Oil Separators Filters

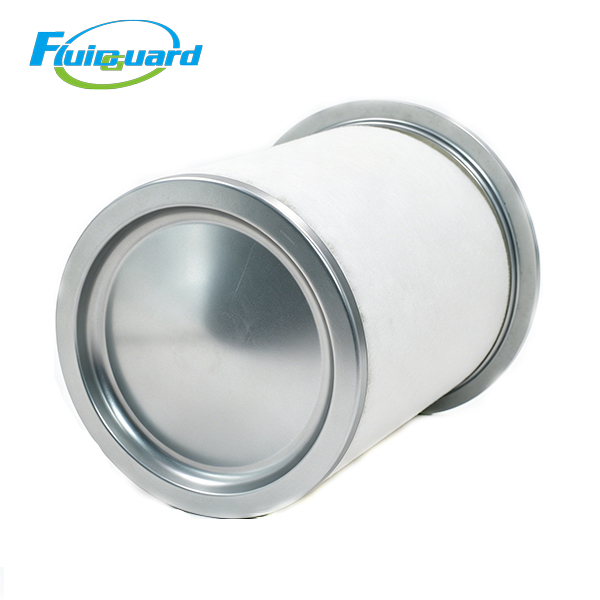

Part No: 22962682

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 4000–8000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -37℃ ~ 121℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Net Weight: 10 kg

Dimensions (mm)

Max Flange Outer Diameter: 531 mm

Cartridge Outer Diameter: 467mm

Central Inner Hole Diameter: 406mm

Overall Height: 460mm

Application Scenarios

Automotive manufacturing plants, heavy machinery processing, large injection molding workshops, factory central compressed air stations, mining pneumatic equipment, shipbuilding production lines, pharmaceutical & food large-scale compressed air systems

Product Features

Oversized multi-gradient high-density glass fiber media with ultra-large oil mist storage capacity, anti-saturation under long-term heavy continuous loads, stably controls residual oil outlet ≤3 ppm throughout full service cycle.

Tall deep-pleated low-resistance cylindrical body with mild differential pressure rise during long-term heavy-load operation, effectively cuts power consumption of 220–260kW large main unit.Eliminates static ignition hazards in high-flow oil mist environment; filter media will not deform or collapse under continuous full-load high-flow running.High & low temperature resistant composite gasket delivers reliable sealing under frequent start-stop and wide temperature fluctuation, preventing oil bypass and excessive oil carry-over failure.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture massive micron-scale lubricant aerosol mixed in high-flow compressed air. Separated lubricant flows back to compressor main unit via central bottom oil return tube for circulation, drastically cutting lubricating oil consumption and extending overall machine maintenance interval for large units.

It provides full protection for downstream large refrigerated dryers, adsorption dryers, heavy-duty precision pneumatic valves and industrial painting equipment, lowering breakdown rate and maintenance cost of large-scale air post-processing purification system.
