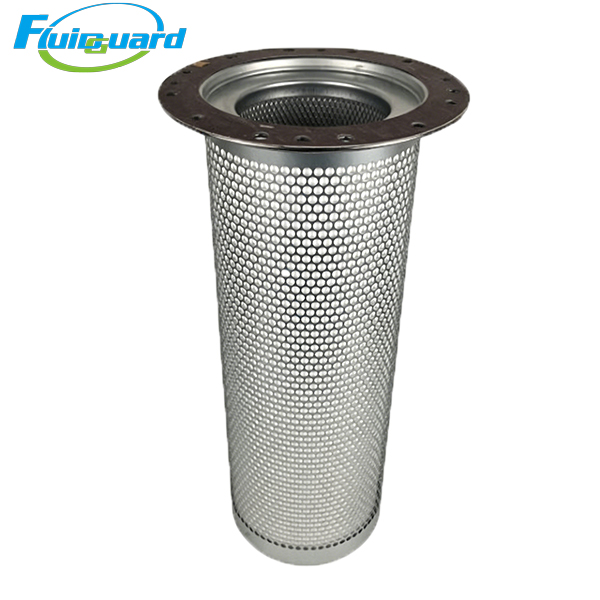

Model : 2205174796
Type : Oil Separators Filters
Replacement for : 2205174796
Efficiently removes fine oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment in general industrial applications.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 2205174796
Type: Flange-mounted coalescing separator
Media: HV borosilicate glass fiber
Filtration precision: ≤ 0.1 μm
Separation efficiency: ≥ 99.99%
Oil carry-over: ≤ 3 ppm
Weight: 3.2 kg
Service life: 3500 – 5000 hours
Initial pressure drop: ≤ 0.02 MPa
Max working pressure: 1.3 MPa
Working temperature: -20°C ~ 120°C
Features
Compact durable: Double metal cage, anti-collapse, corrosion-resistant
Energy saving: Low initial pressure drop, reduces power consumption
Description
Efficiently removes fine oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment in general industrial applications.
