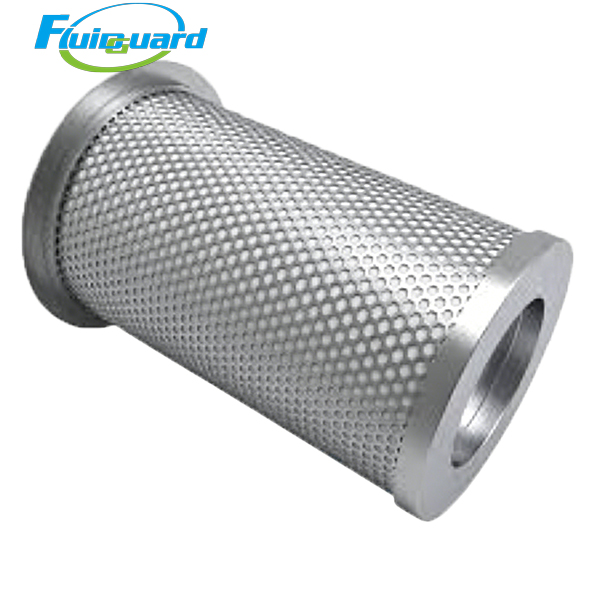

2013402035 Oil Separators Filter

Model : 2013402035

Type : Oil Separators Filters

Replacement for : 2013402035

Removes submicron oil mist from high-flow compressed air, reduces oil consumption, and protects downstream pneumatic equipment in heavy industrial applications.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: 2013402035

Type: 1-stage flange-mounted coalescing separator

Media: HV borosilicate micro glass fiber

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

OD: 495 mm

Height: 711 mm

Flange OD: 513 mm

Weight: 18.5 kg

Service life: 5000 – 8000 hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Application

Industries: Mining, chemical, heavy manufacturing, large workshop

Features

High efficiency: 0.1μm precision, meets ISO 8573-1 Class 1

Heavy-duty: Stainless steel inner mesh, anti-collapse structure

Long life: Premium HV media for high-flow harsh conditions

Low differential pressure: Energy saving

Description

Removes submicron oil mist from high-flow compressed air, reduces oil consumption, and protects downstream pneumatic equipment in heavy industrial applications.
