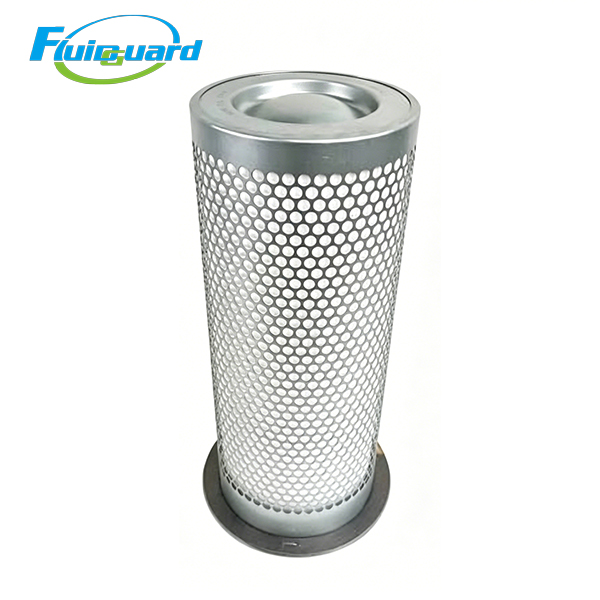

Oil Separators Filters

Part No: 2013402006

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Flange Outer Diameter: 170mm

Cartridge Outer Diameter: 135mm

Central Inner Hole Diameter: 75mm

Overall Height: 200mm

Application Scenarios

Auto repair workshops, plastic injection molding, electronic component assembly, textile printing, small & medium laser cutting equipment, factory central compressed air supply stations, laboratory pneumatic supporting equipment

Product Features

Multi-gradient high-density glass fiber media with stable oil mist storage capacity, anti-saturation under medium continuous loads, stably controls residual oil outlet ≤3 ppm throughout full service cycle.

Uniform deep-pleated low-resistance cylindrical body with mild differential pressure rise during long-term operation, effectively reduces power consumption of 18.5–30kW main unit.

Double-layer fully perforated galvanized anti-static inner & outer support cages, corrosion and pressure surge resistant. Eliminates static ignition hazards in oil mist environment; filter media will not deform or collapse under continuous full-load running.High & low temperature resistant nitrile gasket delivers reliable sealing under frequent start-stop and temperature fluctuation, preventing oil bypass and excessive oil carry-over failure.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricant aerosol mixed in compressed air. Separated lubricant flows back to compressor main unit via central bottom oil return tube for circulation, drastically cutting lubricating oil consumption and extending overall machine maintenance interval.

It provides full protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and laser cutting equipment, lowering breakdown rate and maintenance cost of air post-processing purification system.
