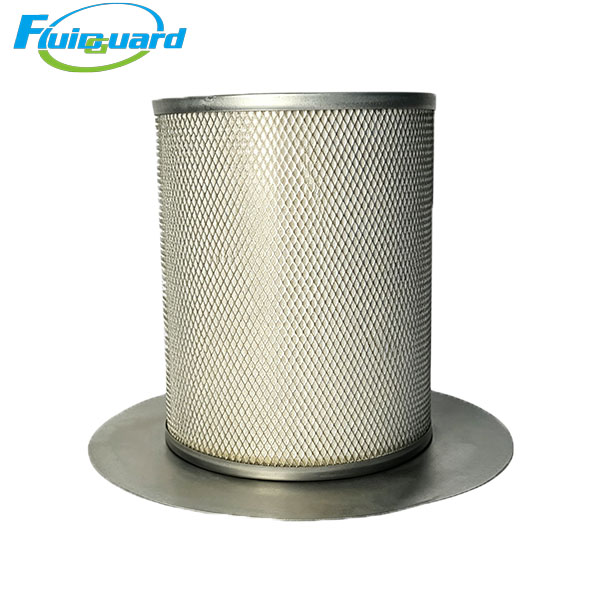

Model : 2013402005
Type : Oil Separators Filters
Replacement for : 2013402005
It installs inside the separator tank, efficiently removing oil mist from compressed air, lowering oil consumption, and safeguarding downstream equipment in manufacturing, mining, and general industry.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 2013402005
Type: Top-hat style air/oil separator element
Media: High-efficiency coalescing glass fiber
Filtration precision: ≤ 0.1 μm
Separation efficiency: ≥ 99.97%
Oil carry-over: ≤ 2–3 ppm
Dimensions:
Diameter:508 mm
Height: 508 mm
Weight:8.2 kg
Service life: 4000–8000 working hours
Max flow: 750 CFM
Max working pressure: 1.03 MPa (150 psi)
Max working temperature: ≤ 121°C
Features
Top-hat design: Easy installation with gasket and grounding wire.
High-efficiency coalescing: Removes submicron oil mist, residual oil ≤3 ppm.
Heavy-duty construction: Perforated metal cage prevents collapse.
Long service life: 4000–8000 hours, reduces maintenance frequency.
Description
It installs inside the separator tank, efficiently removing oil mist from compressed air, lowering oil consumption, and safeguarding downstream equipment in manufacturing, mining, and general industry.
