Oil Separators Filters

Part No: 200ECM035

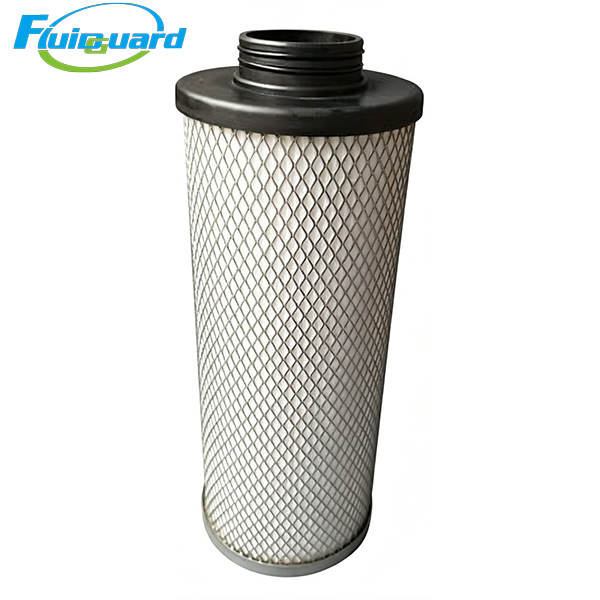

Product Name: Cartridge Built-in Air Oil Separator Element

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–8000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Structure: Straight cylindrical cartridge with built-in thread sealing end

Sealing material: High-temperature fluororubber O-ring

Main Features

Cylindrical integrated cartridge structure, special thread end cap design, easy installation inside separator tank

Multi-stage high-efficiency coalescing medium, excellent capture performance for submicron oil mist particles

Reinforced inner & outer perforated metal support cage, anti-deformation under long-term high airflow impact

High temperature resistant sealing assembly, effectively prevent air bypass and separation efficiency attenuation

Low initial pressure drop, reduce continuous energy consumption of screw air compressor

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other industrial compressed air stations.

Brief Summary

It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower compressor oil consumption.
