Oil Separators Filters

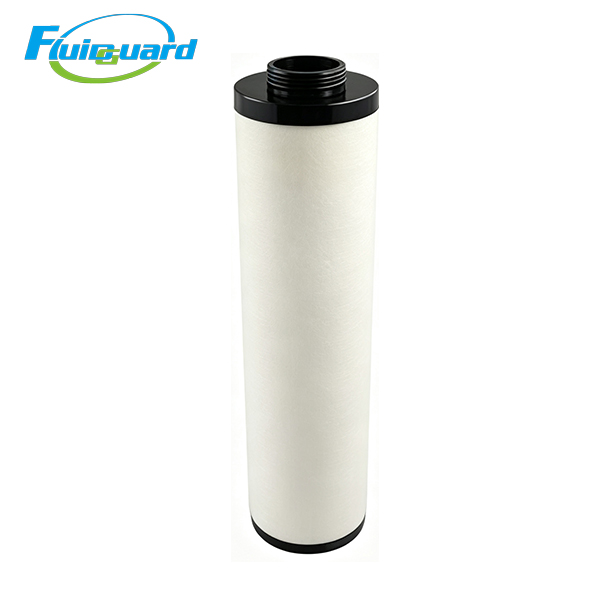

Part No: 1629026308

Core Technical Specifications

Filtration Grade: DD+ Medium General Coalescing

Absolute Filtration Precision: Solid particles ≥0.1 μm, liquid oil/water aerosols ≥0.1 μm

Outlet Residual Liquid Oil Content: ≤0.1 mg/m³ at 7 bar, 20°C, compliant with ISO 8573-1 Class 3 standard

Filtration Efficiency: 99.99% capture efficiency for 0.1 μm oil mist aerosols under ISO 12500 multi-pass test

Filter Media Structure: Multi-layer deep-pleated gradient borosilicate glass fiber composite, outer cyan oleophobic anti-static hydrophobic foam sleeve to prevent liquid re-entrainment

Operating Limits

Max Working Pressure: 1.6 MPa

Continuous Operating Temperature: 3°C ~ 66°C

Differential Pressure Replacement Thresholds

Initial pressure drop of new element: ≤0.012 MPa

Mandatory replacement alarm trigger point: ΔP ≥ 0.06 MPa

Sealing & Support Construction

End Caps: Reinforced corrosion-resistant black PA polyamide multi-hole locking end cap with integrated flow diversion ribs

Seal System: Integrated full-circle NBR nitrile rubber gasket, zero air bypass leakage, resistant to compressor oil and acidic condensate aging

Inner & Outer Support Cage: Double-layer perforated 304 stainless steel mesh, anti-collapse under full rated large-volume continuous airflow

Key Product Advantages

It drastically reduces liquid contamination load on terminal ultrafine and carbon cartridges, extends their service life and cuts factory spare parts & maintenance expenses.

Extra-large oil & liquid holding capacity for stable long-cycle continuous operation

Thick deep-pleated gradient glass fiber matrix provides massive liquid retention volume. It resists rapid pressure rise in humid production workshops with underperforming aftercoolers or refrigerated dryers, minimizing unplanned production downtime from frequent filter swaps.

Heat-stabilized integrated media, zero fiber shedding to avoid secondary pipeline contamination

Heat-cured solidified glass fiber composite paired with double-layer stainless steel support mesh prevents fiber powder detachment under long-term large-volume airflow impact. No glass fiber debris will block spray guns, laser optical lenses and industrial pneumatic control valves.

Ultra-low permanent differential pressure to reduce air compressor energy consumption

Uniform gradient pore layout minimizes airflow resistance throughout the full service lifespan. Stable low backpressure cuts continuous power draw of large screw air compressors and lowers long-term factory electricity costs.
