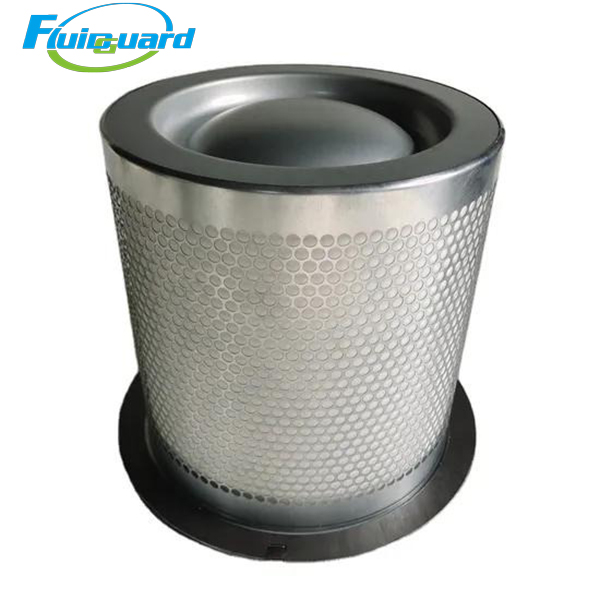

Oil Separators Filters

PN: 1625165727

Type: Coalescing separator cartridge

Media: High-efficiency HV borosilicate glass fiber

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3–6 ppm

Dimensions:

OD: 355 mm

Height: 415 mm

Inner diameter: 160 mm

Weight: 6.5 kg

Service life: 4000 – 6000 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Application fields: Mining, construction, manufacturing, heavy industry

Features

Ultra-high efficiency, 0.1μm precision, minimal oil carry-over.

Reinforced steel mesh & core, anti-collapse, long service life.

Low pressure drop, energy efficient in continuous operation.

Premium HV glass fiber, stable performance in harsh conditions.

Description

Efficiently removes oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment.
