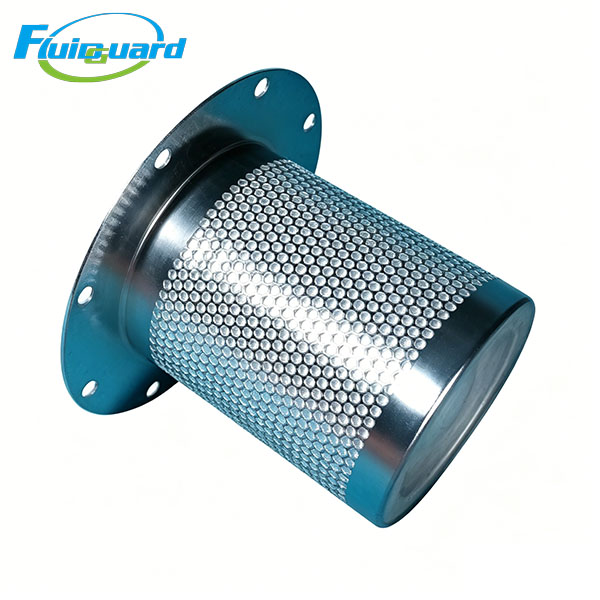

Oil Separators Filters

Part No: 1623051499

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 4000–6000 working hours

Max Working Pressure: 0.7–1.4 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Flange Outer Diameter: 215mm

Cartridge Outer Diameter: 170mm

Central Inner Hole Diameter: 92mm

Overall Height: 280mm

Application Scenarios

Auto parts manufacturing, precision mechanical processing, medium plastic injection molding, electronic assembly lines, medium laser cutting workshops, factory central compressed air stations, textile printing & coating production lines

Product Features

Multi-gradient high-density glass fiber media with large oil mist storage capacity, anti-saturation under medium continuous loads, stably controls residual oil outlet ≤3 ppm through full service cycle.

Uniform deep-pleated low-resistance cylindrical body with mild differential pressure rise during long-term operation, effectively reduces power consumption of 37–55kW main unit.

Double-layer fully perforated galvanized anti-static inner & outer support cages, corrosion and pressure surge resistant. Eliminates static ignition hazards in oil mist environment; filter media will not deform or collapse under continuous full-load running. High & low temperature resistant nitrile gasket delivers reliable sealing under frequent start-stop and temperature fluctuation, preventing oil bypass and excessive oil carry-over failure.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricant aerosol mixed in compressed air. Separated lubricant flows back to compressor main unit via central bottom oil return tube for circulation, drastically cutting lubricating oil consumption and extending overall machine maintenance interval.

It provides full protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and laser cutting equipment, lowering breakdown rate and maintenance cost of air post-processing purification system.
