Oil Separators Filters

Part No: 1621938600

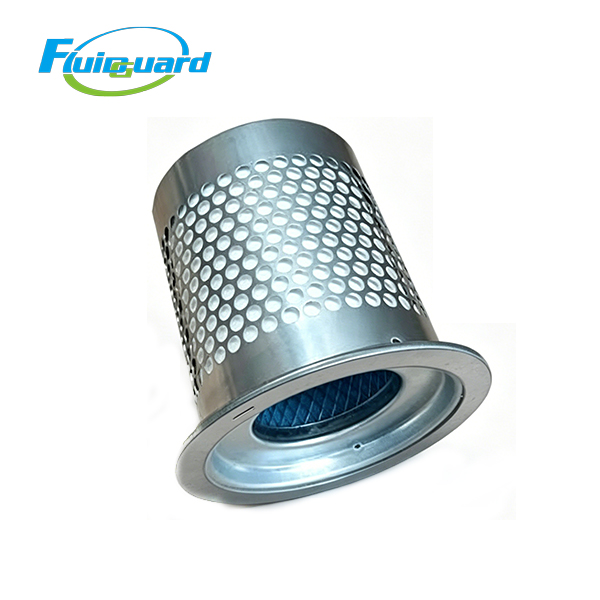

Type: Large flat flange built-in coalescing air/oil separator cartridge

Separation Efficiency: ≥99.999%

Standard Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.4 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Flange Outer Diameter: 596mm

Cartridge Outer Diameter: 350mm

Central Inner Hole Diameter: 263mm

Overall Height: 548mm

Application Scenarios

Whole vehicle auto assembly plants, heavy machinery foundry & machining, super-large injection molding workshops, mine & shipyard central compressed air stations, large food & pharmaceutical production lines, chemical industry air supply systems

Product Features

Oversized multi-gradient high-density glass fiber media with huge oil mist storage capacity, anti-saturation under long-term full heavy load, stably control residual oil ≤3 ppm through full service cycle.

Extra tall deep-pleated low-resistance cylinder, slow differential pressure rising during continuous high-flow operation, effectively reduce power consumption of 315–500kW super large main unit.

Double-layer thickened stainless steel perforated inner & outer support cages, anti-static, anti-corrosion & anti-pressure impact; filter media will not deform or collapse under maximum airflow, eliminate static ignition risk of oil mist.

Fluorine rubber gaskets resist high temperature & aging, reliable sealing under frequent start-stop and temperature fluctuation, avoid oil bypass and excessive oil carry-over failure.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to intercept micron-level lubricant oil aerosol in ultra-large volume compressed air. Separated lubricant flows back to the main unit through the central bottom gravity oil return tube for recycling, greatly reduce lubricating oil consumption and extend overall machine maintenance interval.

It fully protects downstream large refrigerated dryers, adsorption dryers, heavy-duty precision pneumatic valves and industrial spraying equipment, lower breakdown frequency and maintenance cost of large-scale air post-processing purification system.
