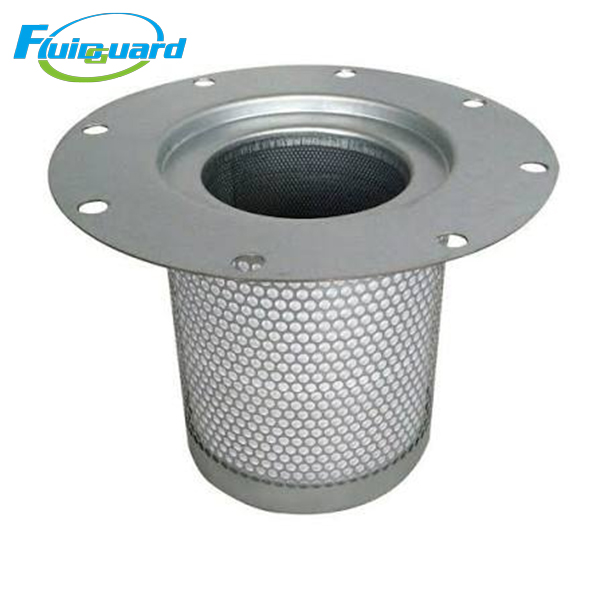

Oil Separators Filters

Core Technical Specifications

Filtration Grade: Primary 0.1μm high-efficiency coalescing separation for large heavy-load industrial screw compressors

Absolute Filtration Precision: 0.1 μm submicron oil mist aerosol capture

Filter Media: Imported European multi-layer deep-pleated gradient glass fiber composite, oleophobic coated, anti-hydrolysis, continuous temperature resistance up to 110°C

Max Continuous Working Pressure: 1.0 MPa

Operating Temperature Range: -10°C ~ +110°C

Clean low-dust factory: 3,500–5,500 operating hours or 12 months (whichever comes first)

Heavy dust / painting workshop / 24h full-load production: 2,600–4,000 hours

Mandatory Replacement Trigger: Differential pressure ΔP ≥ 0.08 MPa or visible oil carryover at air outlet

Differential Pressure Thresholds

Initial pressure drop of new element: ≤0.02 MPa

Alarm replacement differential pressure: ≥0.08 MPa

Structural Advantages

Thick galvanized perforated outer cage: Anti-rust, resists long-term erosion of high-temperature oil vapor and acidic condensate

Extra thickened central support tube: Anti-collapse under large-volume high-speed airflow surges

Integrated wide flat flange + dual O-ring sealing structure: Zero bypass leakage under long-term pressure fluctuation

Built-in central oil return pipeline: Automatically recovers coalesced lubricant back to oil sump to prevent secondary oil re-entrainment

Key Product Advantages

Oversized deep-pleated media with ultra-high dirt holding capacity & stable low pressure loss

Super tall pleated area holds massive oil sludge, carbon deposits and liquid contaminants; differential pressure rises slowly throughout the full service cycle even under continuous heavy full-load operation. Layered coalescing structure aggregates micro oil droplets into continuous liquid film for gravity reflux, maintaining stable ultra-high separation efficiency without performance decay.

Independent central oil return channel suppresses oil carryover

Coalesced liquid oil flows back to tank bottom via dedicated internal tube, prevents high-speed turbulent airflow from blowing separated oil back into air pipeline, keeps exhaust residual oil stably below 3 ppm and greatly reduces compressor oil consumption.

Heavy-duty anti-corrosion & static-safe metal frame for harsh industrial environments

All metal supports adopt thick galvanized anti-rust coating, resistant to high-temperature vapor and condensate corrosion inside large oil tanks; static conductive media eliminates static discharge fire hazard in oil-air mixed atmosphere.

Working Principle

High-temperature large-flow oil-air mixed gas from screw host enters the outer cavity of separator core; large oil droplets are intercepted and settle on outer drainage fleece via gravity for primary separation.

Remaining 0.1μm submicron oil mist penetrates multi-layer gradient glass fiber media; tiny oil particles collide, aggregate and coalesce into continuous liquid oil film.

Coalesced lubricant flows downward along media layers, converges into central built-in oil return tube and recirculates back to oil tank for reuse.

Clean compressed air with residual oil ≤3 ppm flows out from inner core air outlet to post-treatment dryers, precision filters and production pneumatic terminals.

The element cannot be cleaned or regenerated. Once media is saturated with sludge and dust, differential pressure surges and separation efficiency fails, requiring full core replacement.

Application Scope

Automotive body electrostatic painting workshops, heavy metal fiber laser cutting plants, super-large plastic injection molding lines, bulk food & beverage sterile packaging pneumatic systems, textile mill central compressed air supply, medium-large pharmaceutical aseptic production gas pretreatment, heavy mining machinery pneumatic tool stations.
