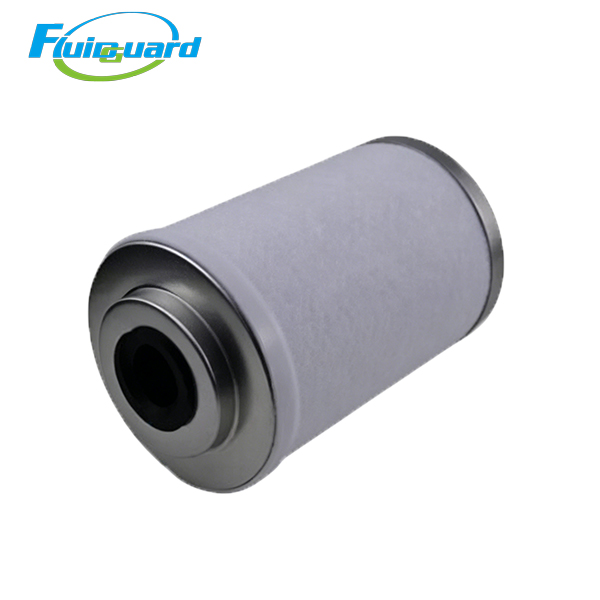

Model : 1613943600
Type : Oil Separators Filters
Replacement for : 1613943600
It adopts multi-layer progressive density composite glass fiber depth coalescing structure: multi-density microfiber layers trap micron oil droplets and submicron oil aerosols generated during oil-injected screw compression, condense tiny oil particles into liquid oil and flow back to the oil tank b
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model No: 1613943600
Filter Type: External Spin-On Air Oil Separator Element
Filter Media: Imported Gradient HV Borosilicate Composite Microfiber
Absolute Separation Precision: 0.1μm
Max Residual Oil Content: ≤3 PPM
Max Working Pressure: 1.3 MPa
Max Continuous Working Temp: ≤150℃
Standard Service Life: 4000–6000 Working Hours
Net Weight: 1.13 KG
Application Scope
Road engineering, mining, equipment rental temporary air supply
Sandblasting, rock drilling, construction pneumatic tools supporting air source
Small factory temporary compressed air stations, front-end separation of post-treatment filtration system
Product Features
0.1μm absolute separation precision, oil mist removal efficiency ≥99.999%, outlet residual oil ≤3ppm, compliant with ISO8573-1 compressed air oil content standard.
Large-area deep pleated composite fiber media provides outstanding oil holding capacity, effectively delaying differential pressure rise and extending replacement cycle to 4000–6000 working hours.
Full welded thick steel shell + perforated inner support, high collapse resistance, stable operation under 1.0–1.3MPa continuous working pressure.
Imported HV/Lydall microfiber media, resistant to 150℃ high temperature, compressor lubricant and weak acid corrosion, zero fiber shedding to avoid secondary pipeline pollution.
Optimized uniform pleat layout maintains ultra-low initial pressure drop ≤0.02MPa, reducing compressor power loss and long-term operation cost.
Integrated fluorine rubber sealing gasket, anti-aging and anti-oil corrosion, completely eliminating gas-oil bypass leakage at mounting thread.
Standard spin-on quick-install design for fast disassembly & replacement, lowering maintenance labor cost of mobile construction compressors.
