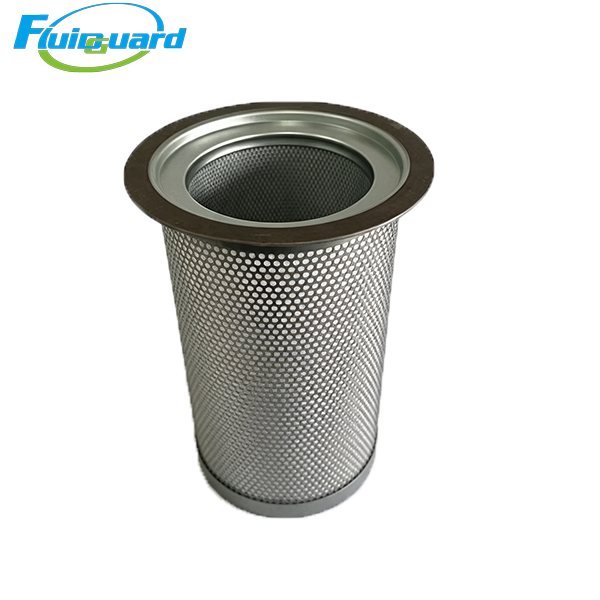

Oil Separators Filters

Part No: 124487-021

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High-temperature fluororubber composite flange gasket

Main Features

Multi-gradient high-efficiency coalescing medium, excellent capture performance for submicron oil mist aerosols in compressed air.

Reinforced inner & outer perforated metal support cage, effectively resist deformation under continuous high-speed airflow impact.

High temperature resistant sealing gasket, prevent air bypass and gradual attenuation of separation efficiency.

Low initial pressure drop, reduce long-term energy consumption of screw air compressor.

Optimized pleating layout, large effective filtration area, uniform airflow distribution and stable long service cycle.

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other industrial compressed air stations.

Brief Summary

It separates lubricating oil mist from compressed air, improves outlet air cleanliness and recycles lubricant oil to lower continuous oil consumption of compressor main unit.
