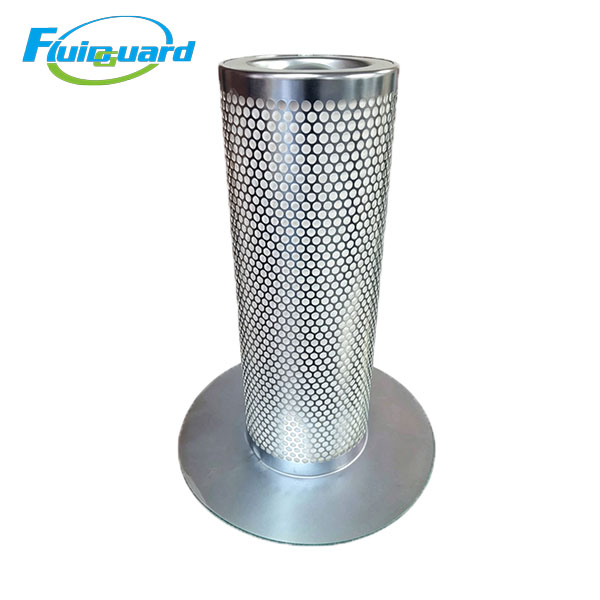

Oil Separators Filters

Core Technical Specifications

Filtration Grade: Primary 0.1 μm high-efficiency coalescing separation for small-medium industrial screw compressors

Absolute Separation Precision: 0.1 μm submicron oil mist aerosol capture

Filter Media: Imported Ahlstrom multi-layer deep-pleated gradient glass fiber composite with oleophobic coating, hydrolysis resistant, continuous temperature resistance up to 108°C

Max Continuous Working Pressure: 1.0 MPa

Operating Temperature Range: -10°C ~ +108°C

Clean low-dust factory workshop: 3,500–6,000 operating hours or 12 months

Mandatory Replacement Trigger: Differential pressure ΔP ≥ 0.08 MPa or obvious oil carryover in downstream pipelines

Initial pressure drop of brand-new element: ≤0.02 MPa

Alarm replacement differential pressure: ≥0.08 MPa

Structural Construction Features

Galvanized perforated outer protective cage, anti-rust and resistant to long-term erosion of high-temperature oil vapor and acidic condensate

Thickened central support tube, anti-collapse under small-medium volume high-speed airflow surges

Integrated flat flange matched with heat-resistant gasket to avoid bypass leakage

Built-in central oil return pipeline, automatically recovers coalesced lubricant back to oil sump to prevent secondary oil re-entrainment

Key Product Advantages

Deep-pleated media with sufficient dirt holding capacity & stable low pressure loss

Sufficient pleated area accommodates oil sludge, carbon deposits and liquid contaminants. Differential pressure rises gently throughout the full service cycle even under continuous full-load operation, maintaining stable high separation efficiency without rapid performance degradation.

Built-in independent oil return structure to stabilize residual oil content

Coalesced liquid oil flows back to oil tank via dedicated internal tube, preventing separated oil from being re-atomized by turbulent airflow. It keeps stable low residual oil at outlet and effectively reduces compressor oil consumption.

Anti-corrosion & anti-static heavy-duty structure suitable for general industrial environments

All metal supports are galvanized for rust protection, resistant to high-temperature vapor and condensate corrosion inside oil tanks. Anti-static filter media eliminates static discharge fire risk in oil-air mixed atmosphere.

Working Principle

High-temperature medium-flow oil-air mixed gas from screw host enters the outer cavity of separator element. Large oil droplets hit outer cage and settle down by gravity for primary separation.

Remaining 0.1 μm ultra-fine oil mist penetrates multi-layer gradient glass fiber media. Tiny oil particles collide, aggregate and coalesce into continuous liquid oil film.

Coalesced lubricant flows downward along filter media, converges into central built-in oil return tube and flows back to oil tank for recycling.

Clean compressed air with residual oil ≤3 ppm flows out from inner core to dryers, precision filters and production pneumatic terminals.

The element cannot be cleaned or regenerated. Once media is saturated with sludge and impurities, differential pressure surges and separation efficiency fails; full replacement is required.

Application Scope

Automotive component electrostatic painting workshops, metal cutting & welding factories, small plastic injection molding lines, food & beverage packaging pneumatic systems, textile small workshop air supply, general machinery processing pneumatic stations.
