Model : 1092903982
Type : Oil Separators Filters
Replacement for : 1092903982
It efficiently captures and removes oil mist from compressed air, maintaining residual oil content below 3 ppm to deliver clean, high-quality compressed air. This separator ensures stable operation of the compressor unit and extends the service life of both the compressor and downstream pneumatic eq
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.

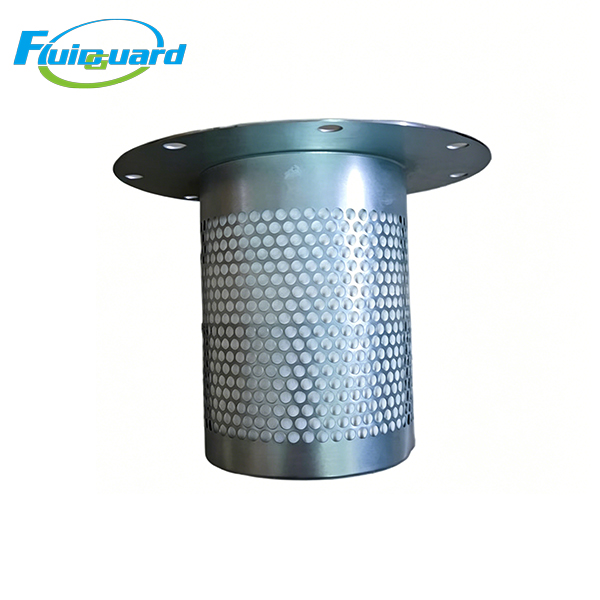

PN: 1092903982
Type: Flange Mount Coalescing Separator
Media: HV Borosilicate Glass Fiber
Filtration: 0.1 μm
Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 3500–6000 hours
Max Pressure: 0.7–1.3 MPa
Temperature: -20°C ~ 120°C
Dimensions: OD 215 mm, Height 230 mm
Weight: 5.2 kg
Features
High-efficiency HV glass fiber media for superior coalescing and filtration performance
Low pressure drop to minimize energy consumption
Anti-static steel casing with excellent corrosion resistance
High-performance Viton seal for reliable long-term operation
Description
It efficiently captures and removes oil mist from compressed air, maintaining residual oil content below 3 ppm to deliver clean, high-quality compressed air. This separator ensures stable operation of the compressor unit and extends the service life of both the compressor and downstream pneumatic equipment.
