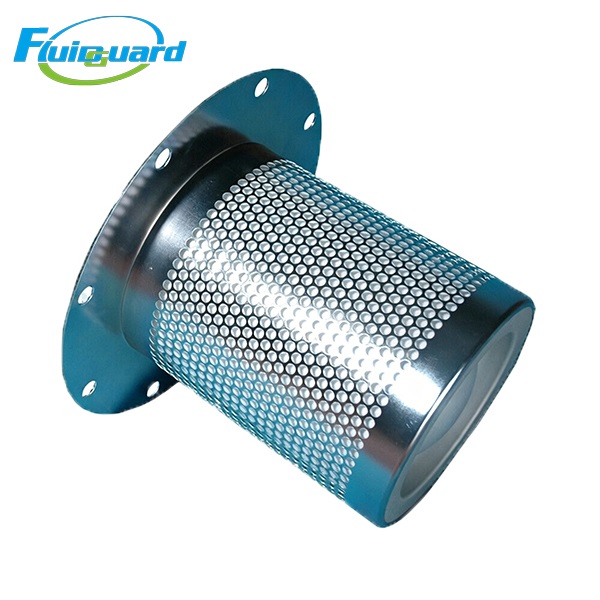

Model : 1092300919
Type : Oil Separators Filters
Replacement for : 1092300919
It efficiently removes oil mist from compressed air, reducing oil consumption and protecting downstream pneumatic equipment.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 1092300919
Type: Flange-mounted coalescing separator cartridge
Filter Media: HV borosilicate micro glass fiber
Filtration Precision: ≤ 0.1 μm
Separation Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 4000 – 6000 working hours
Initial Pressure Drop: ≤ 0.02 MPa
Max Working Pressure: 1.6 MPa
Working Temperature: -20°C ~ 120°C
Dimensions
Outer Diameter (OD): 220 mm
Height: 272 mm
Inner Diameter (ID): 157 mm
Flange OD: 363 mm
Weight: 5.2 kg
Application Fields: Industrial manufacturing, compressor stations, pneumatic systems
Features
High-efficiency filter media ensures ultra-low oil carry-over
Reinforced steel inner frame prevents deformation and extends service life
Anti-static structure ensures safe operation in harsh industrial environments
Low pressure loss design reduces energy consumption
Description
It efficiently removes oil mist from compressed air, reducing oil consumption and protecting downstream pneumatic equipment.
