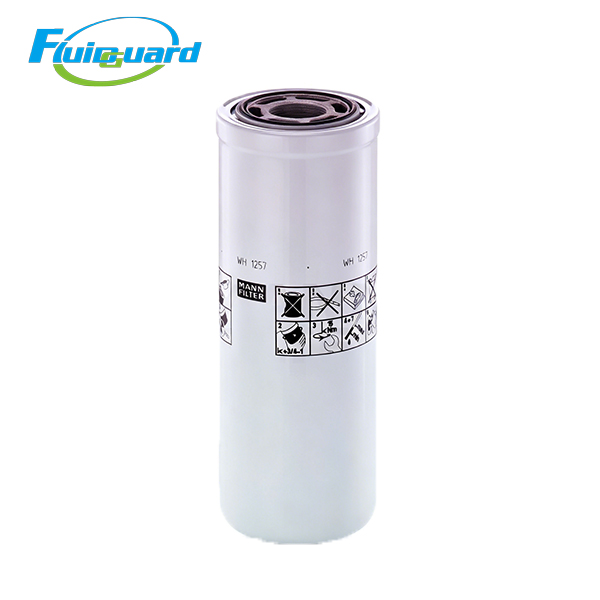

WH1257/4 Oil Filter

Model : WH1257/4

Type : Oil Filters

Replacement for : WH1257/4

High-performance spin-on filter for hydraulic and lubrication systems. It effectively removes fine contaminants, ensures stable system operation and reduces maintenance costs

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: WH1257/4

Seal: NBR rubber gasket

Thread: 1 3/4"-12 UN-2B

Dimension: OD 117 mm × Height 296 mm

Weight: 2.01 kg

Max collapse pressure: 1.5 MPa

Max burst pressure: 5.4 MPa

Max flow rate: 300 L/min

Working temperature: -10℃ ~ +120℃

Application

Designed for hydraulic systems of industrial machinery, construction equipment, heavy-duty trucks and compressors.

Features

Premium microglass media achieves ultra-fine filtration to protect system components.

Reinforced structure delivers excellent pressure resistance for harsh working conditions.

Large dirt holding capacity prolongs service intervals.

Standard spin-on design enables quick and convenient replacement.

Description

High-performance spin-on filter for hydraulic and lubrication systems. It effectively removes fine contaminants, ensures stable system operation and reduces maintenance costs
