Oil Filters

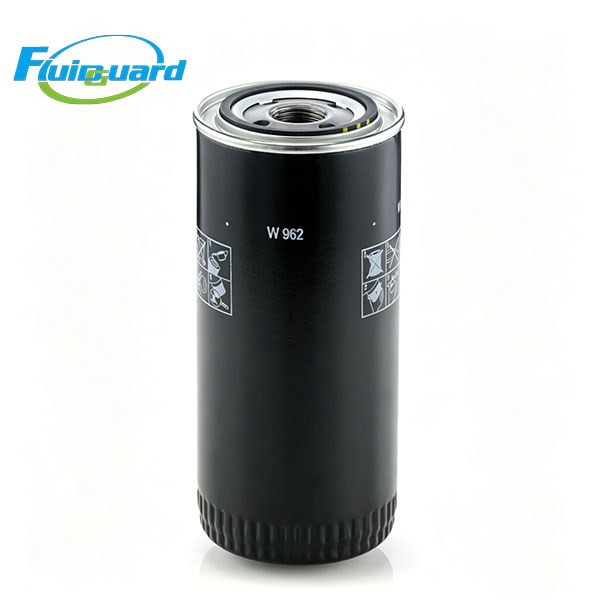

The W962 is a heavy-duty spin-on oil filter, specially designed for industrial diesel engines, construction machinery and commercial vehicle lubrication systems. It efficiently traps metal debris, carbon deposits, sludge and fine contaminants in engine oil, ensuring clean oil circulation. It protects internal engine parts from premature wear and clogging, and maintains long-term stable operation of the equipment.

Key Features

Made of high-density composite filter media, with accurate filtration precision and large dirt holding capacity, extending service cycle.

Equipped with anti-drain back valve to avoid oil backflow and dry start after engine shutdown.

Built-in bypass valve guarantees normal oil supply when the filter is blocked or in cold start condition.

Thickened steel shell structure, high pressure resistance, not easy to deform, adapting to harsh working environments.

Premium nitrile rubber sealing ring for tight installation, excellent leak-proof performance.

Standard thread and overall dimension, easy screw-on installation, direct replacement without any modification.

Technical Specifications (Real Exact Size & Data)

Part Number: W962

Type: Spin-on Oil Filter

Outer Diameter: 96 mm

Overall Height: 148 mm

Seal Outer Diameter: 72 mm

Seal Inner Diameter: 61 mm

Thread Size: 3/4-16 UNF

Filtration Rating: 15 μm

Filtration Efficiency: ≥ 99.3%

Bypass Valve Pressure: 2.4 bar

Max Working Pressure: 2.0 MPa

Service Life: 2000–3000 operating hours

Application:Suitable for engineering machinery, commercial vehicles, agricultural machinery, industrial diesel engines and generator sets with matching mounting standards.
