Oil Filters

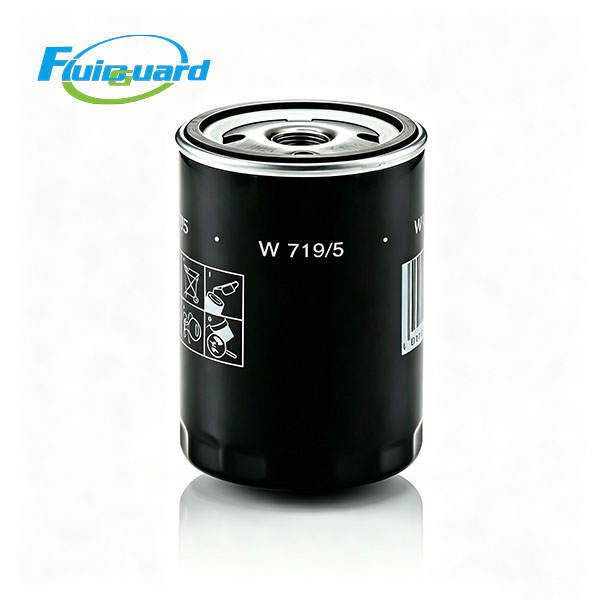

The W719/5 is a standard spin-on oil filter, designed for passenger cars, light commercial vehicles, industrial small diesel engines and mechanical lubrication systems. It efficiently filters metal particles, carbon deposits, sludge and fine contaminants out of engine oil, keeps the lubrication circuit clean, reduces internal component wear, prevents blockage, and maintains stable engine operation.

Key Features

Adopts high-quality cellulose composite filter media, with stable filtration precision and large dirt holding capacity to extend service interval.

Built-in anti-drain back valve avoids oil backflow after engine shutdown and protects against dry start-up.

Internal bypass valve ensures smooth oil supply under cold start or filter clogging conditions.

Integrated heavy-duty steel shell, pressure-resistant and not easy to deform, fits daily and light commercial working environments.

Premium rubber sealing ring ensures close mounting, good aging resistance and reliable oil leakage prevention.

Standard overall size and thread structure, easy screw-on installation, direct replacement without any modification.

Technical Specifications

Part Number: W719/5

Type: Spin-on Oil Filter

Outer Diameter: 76 mm

Overall Height: 85 mm

Seal Outer Diameter: 62 mm

Seal Inner Diameter: 55 mm

Thread Size: 3/4-16 UNF

Filtration Rating: 15 μm

Filtration Efficiency: ≥ 99.3%

Bypass Valve Opening Pressure: 2.2 bar

Max Working Pressure: 1.8 MPa

Service Life: 2000–3000 operating hours

Application:Suitable for passenger cars, light trucks, agricultural machinery, small industrial diesel engines and generator sets with matching installation dimensions.
