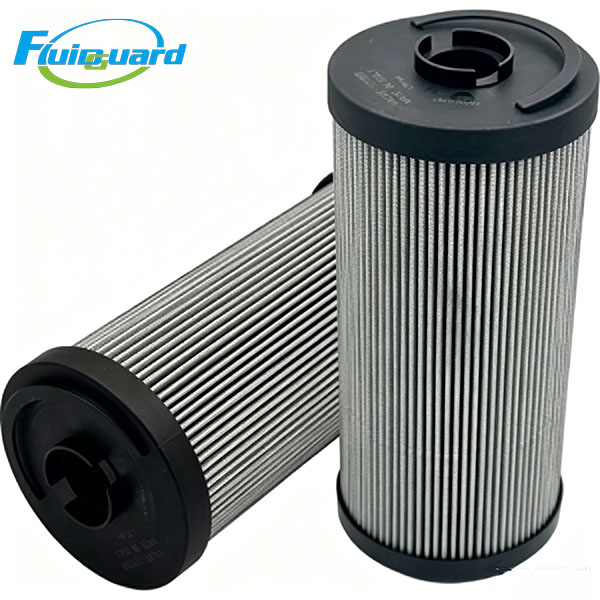

SH8218 Oil Filter

Model : SH8218

Type : Oil Filters

Replacement for : SH8218

It uses high‑efficiency cellulose media to remove 10 μm+ contaminants, ensuring clean oil circulation and protecting core components. The robust, bypass‑equipped design delivers reliable filtration for continuous industrial use

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Model: SH8218

Type: Spin‑on Oil Filter

Specifications

Outer Diameter: 108 mm

Height: 172 mm

Thread Size: 1 1/4‑12 UNF

Filter Media: High‑efficiency cellulose

Filtration Precision: 10 μm

Efficiency: ≥99.8%

Max Working Pressure: 7 bar

Service Life: 2000–4000 hours

Weight: 0.95 kg

Features

10 μm High‑Efficiency Media: Traps fine metal particles and sludge to protect rotors and bearings

Spin‑on Design: Tool‑free installation and replacement for easy maintenance

Integrated Bypass Valve: 2.5 bar opening pressure ensures lubrication during clogging

Heavy‑Duty Construction: Durable steel casing with leak‑proof seal for long‑term operation
