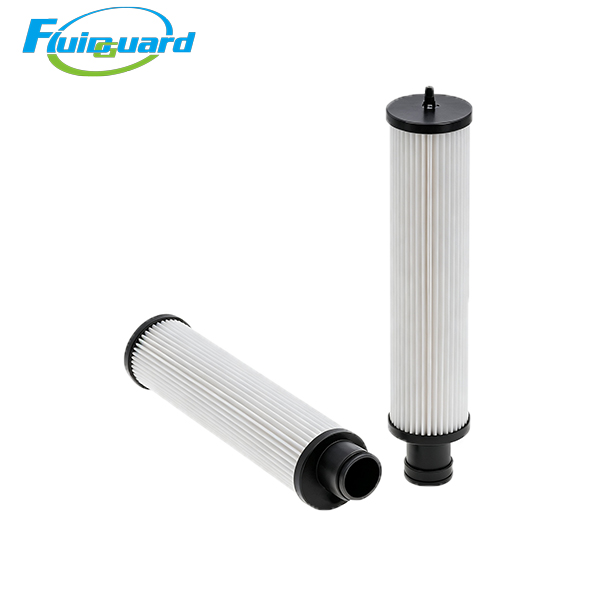

SH62258 Oil Filter

Model : SH62258

Type : Oil Filters

Replacement for : SH62258

It uses high precision composite glass fiber media to filter impurities in lubricant oil, with stable performance under 120°C high temperature. Featuring low pressure drop and 4000-hour service life, this built-in filter protects compressor rotors and bearings, widely used in all kinds of industrial

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Main Features

High-precision composite filter media

Adopts imported glass fiber composite filter paper, effectively intercept metal particles, carbon deposits and oil sludge in compressor lubricant oil. Filtration precision reaches 5μm, fully protect compressor rotor, bearings and precision host parts from abrasion damage.

High temperature & pressure resistant structure

Integrated reinforced plastic end cap + built-in metal inner support tube, prevent filter medium collapse under long-term oil pressure impact. High temperature resistant nitrile rubber sealing ring achieves full leak-free sealing, stable continuous operation under 120°C high oil temperature and 16bar working pressure.

Low flow resistance & long service life

Large folded filter area brings low initial pressure drop, will not increase compressor oil circuit load and power consumption. Standard service cycle is 4000 running hours; replace when differential pressure exceeds 0.06MPa.

Main Applications

Widely matched with medium-sized industrial screw compressors used in machinery processing, paint spraying, electronic assembly, textile, food and pharmaceutical factories.

Core function: Purify circulating lubricating oil of air compressor host, remove solid impurities in oil, reduce wear of compressor core components, extend the service life of screw host and air-oil separator.
