Oil Filters

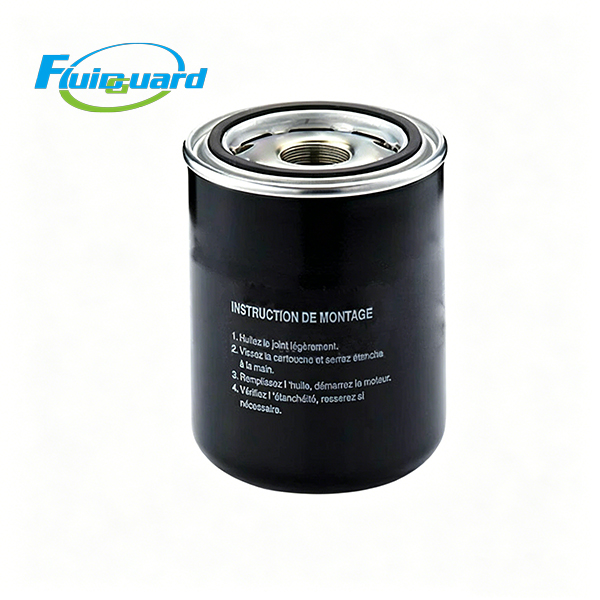

The P-CE13-510 is a heavy-duty spin-on oil filter, mainly used for screw air compressors and industrial lubrication systems. It efficiently intercepts metal wear particles, carbon deposits, sludge and fine contaminants in lubricating oil, keeps the oil circuit clean, reduces component friction and wear, and ensures stable operation of equipment under high-load and continuous-duty conditions.

Key Features

Adopts high-efficiency cellulose and synthetic composite filter media, with stable 10–15 μm filtration accuracy and large dirt holding capacity for long service life.

Built-in anti-drain back valve prevents oil backflow after shutdown and avoids dry-start damage to equipment.

Internal bypass valve ensures continuous oil supply during cold start or filter clogging.

Reinforced thick steel shell, high pressure and deformation resistance, adapts to harsh industrial working environments.

High-quality nitrile rubber seal ring, good heat and aging resistance, tight fitting and reliable oil leakage prevention.

Standard spin-on design with universal thread size for easy installation and direct replacement without modification.

Technical Specifications

Part Number: P-CE13-510

Type: Spin-on Oil Filter

Outer Diameter: 96 mm

Overall Height: 172 mm
