Model : DF5004
Type : Oil Filters
Replacement for : DF5004
Height : 305 mm
It uses high‑efficiency HV glass fiber media with 99.99% filtration efficiency, capturing oil mist down to 0.1μm and keeping residual oil ≤3ppm.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.

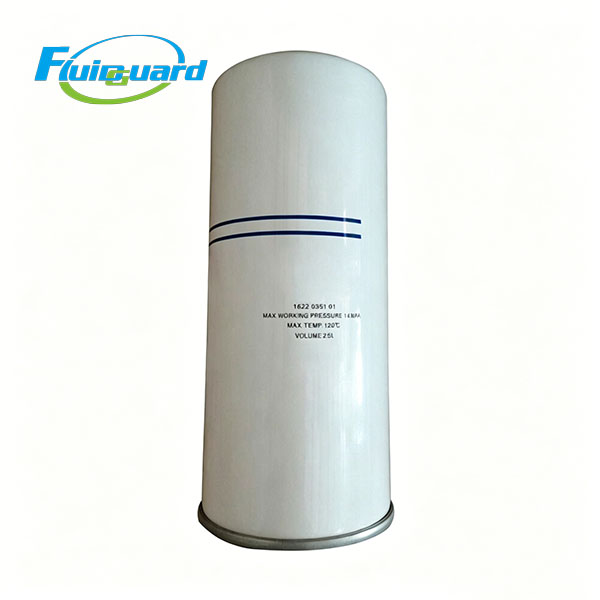

Model No: DF5004
Product Name: Spin‑on Oil Separator Core
Features
Media: Imported high‑efficiency glass fiber composite
Efficiency: ≥99.999% @ 0.1 μm; residual oil ≤ 3 ppm
Initial Pressure Drop: ≤ 0.02 MPa (0.2 bar)
Structure: Spin‑on cartridge, metal housing, nitrile rubber gasket
Max Working Pressure: 1.2 MPa
Max Working Temperature: 120°C
Service Life: 3,500–6,000 hours
Dimensions
Outer Diameter: 140 mm
Height: 305 mm
Weight: 2.9 kg
Function
Separates fine oil mist from compressed air
Keeps air residual oil ≤3 ppm, protects downstream equipment
Reduces oil carry‑over and extends compressor service life
