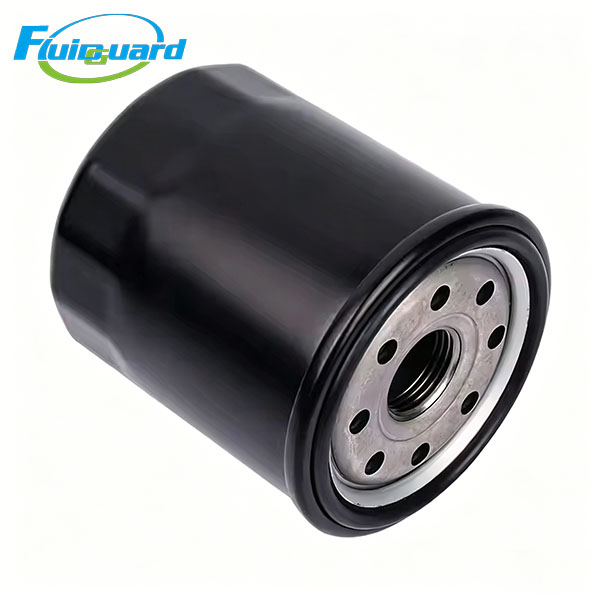

Oil Filters

Part No.: C3030004

Filter Media: Imported composite cellulose + fine glass fiber

Filtration precision: 8~12μm, filtration efficiency ≥98.5%

Standard service life: 2000 working hours, extended up to 4000h under clean ambient environment

Compatible fluid: Mineral & fully synthetic screw compressor lubricating oil

Product Features

Deep-pleated multilayer filter medium with large dirt storage volume, efficiently trap metal abrasive debris, oil carbon residue, oxidation colloid and pipeline rust impurities to protect host airend.

Built-in dual safety structure: anti-drainback valve locks internal residual oil after shutdown to avoid dry-start wear; bypass valve opens at 1.3bar pressure difference upon clogging to maintain continuous oil circulation and prevent compressor high-temperature shutdown.

Electrophoresis anti-rust thick steel shell + high-temperature resistant NBR full-seal gasket, excellent leak-proof performance under long-term vibration and unstable oil pressure.

Description

Key consumable part of screw compressor lubrication system, installed on main oil pipeline to purify circulating lubricant, stabilize compressor operating temperature, prolong oil service cycle and lower unexpected breakdown maintenance cost.
