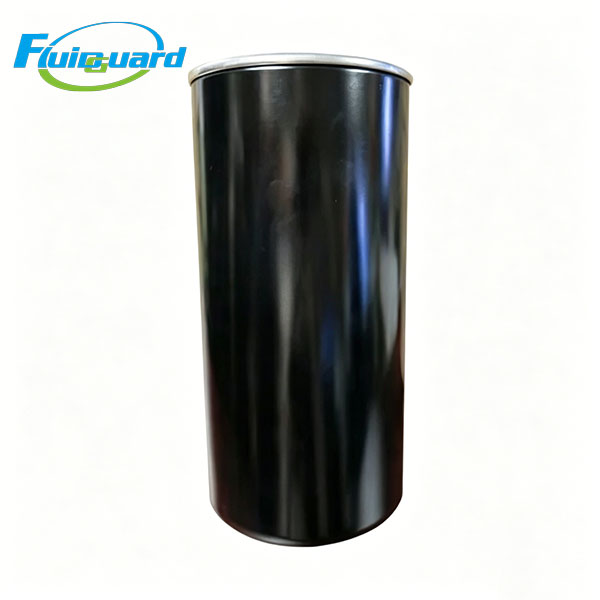

B407701 Oil Filter

Model : B407701

Type : Oil Filters

Replacement for : B407701

remove impurities in lubricating oil to protect host rotor and bearings

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

Model：B407701

Type：Spin-on compressor oil filter

Specifications

Outer Diameter：110mm

Overall Height：175mm

Thread：1 1/8"-12 UN

Filter Media：Composite glass fiber + HV filter paper

Filtration precision：10~15μm

Service life：2000 working hours

Features

Built-in bypass valve & anti-drainback valve, stable pressure during startup/shutdown

Nitrile rubber sealing ring, high oil resistance, no leakage

Large filter area, strong dirt holding capacity, low flow resistance & energy saving

Application

remove impurities in lubricating oil to protect host rotor and bearings
