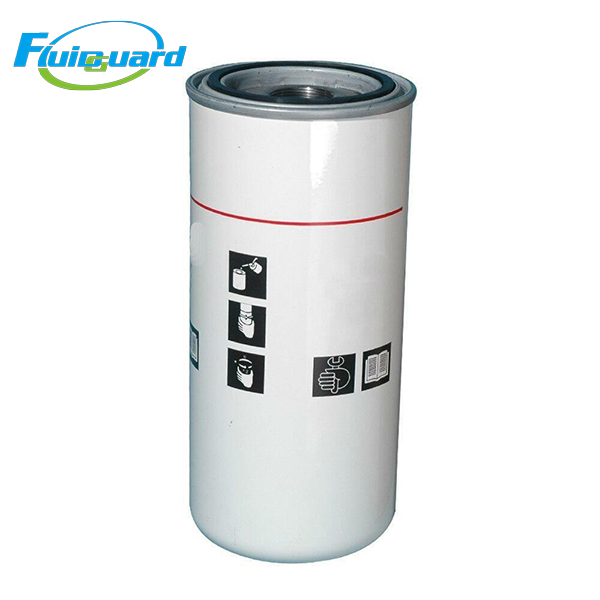

Model : 66094212
Type : Oil Filters
Replacement for : 66094212
Height : 172 mm
It removes metal particles, sludge and fine contaminants from lubricating oil, protecting bearings, rotors and oil circuit. For heavy‑duty continuous operation.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
It removes metal particles, sludge and fine contaminants from lubricating oil, protecting bearings, rotors and oil circuit. For heavy‑duty continuous operation.
Main Features
Filtration Precision: 10–15 μm, efficiency ≥99.8%
Working Pressure: Up to 16 bar
Thread: M24×1.5
Media: HV / Ahlstrom pure wood pulp filter paper, high dirt holding capacity
Shell: Heavy‑gauge steel, rust‑proof
Seal: Nitrile rubber gasket, leak‑proof
Service Life: 2,000 hours
Flow: High oil flow, low pressure drop
Design: Spin‑on, direct replacement
Dimensions
Outer diameter:93 mm
Height:172 mm
