Oil Filters

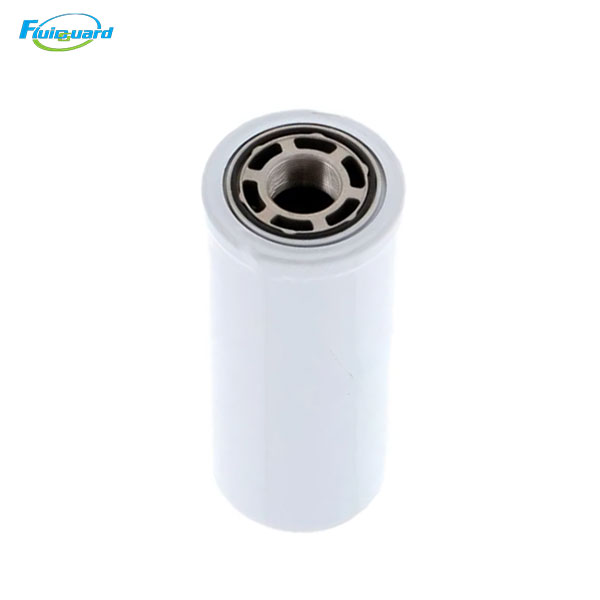

The 535A0354H02 Controls Oil Filter is a high - quality replacement part, This OEM - equivalent filter ensures it meets or even surpasses the original manufacturer's specifications.​

Technical Specifications:​

Filtration Grade: It features a high - precision filtration system. The filter media, made of a specialized microglass material, can effectively capture particles as small as 10 microns. With a beta 2 rating of 7.00 and a beta 1000 rating of 23.00, it offers excellent filtration efficiency.​

Dimensions: The filter has an outer diameter of 4.75 inches (120.65 mm) both at the top and bottom. The thread size is 1 - 3/4 - 12, and it has a single - open - end configuration. The overall length is approximately 295.40 mm.​

Flow Direction and Pressure: The direction of flow is from outside to in. The change - out differential pressure is set at 20 psid, ensuring stable operation within the system.​

Performance and Durability:​

Filtration Performance: This oil filter is engineered to provide outstanding engine protection. It can trap both large and microscopic particles, preventing them from entering the engine and causing damage. By removing impurities from the oil, it helps maintain the engine's performance and extends its service life.​
