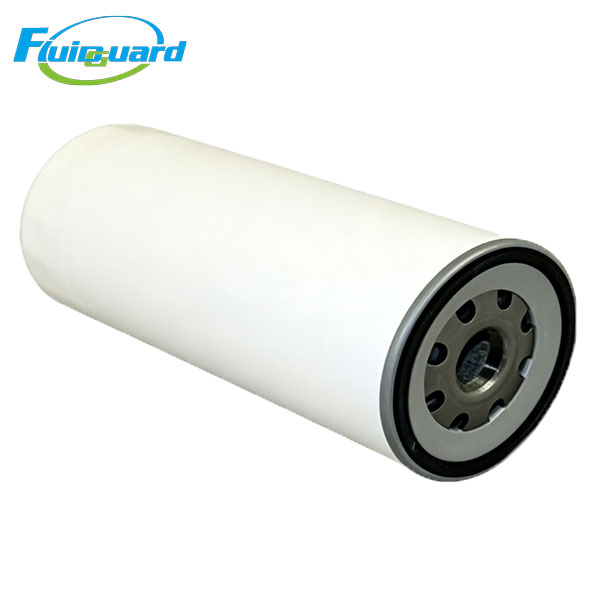

Oil Filters

PN：39796982

Type：Spin-on full-flow compressor oil filter

Filter medium：Multi-layer imported HV glass fiber composite

Filtration precision：3μm，filtration efficiency ≥99.8%

Rated service life：2000 working hours，upgrade version up to 3000~4000h

Working temperature：-30℃ ~ +125℃，compatible with mineral oil, semi-synthetic & fully synthetic compressor lubricants

Seal：High-temperature resistant NBR integrated gasket，standard OEM thread size

Core Product Features

Deep-pleated glass fiber medium enlarges effective filtering area greatly, large dirt holding capacity to intercept metal abrasive debris, oil carbon deposition, pipeline rust and oxide impurities inside circulating oil, keep lubricating system clean persistently

Thickened cold-rolled steel shell with anti-explosion & anti-vibration design, adapts to long-term 24h continuous high-pressure industrial operation, effectively avoid shell deformation and oil leakage

Built-in differential pressure bypass valve opens at preset pressure difference; when filter is blocked, it ensures uninterrupted oil supply to avoid host rotor ablation and unit overheat shutdown

Low & stable initial pressure drop in full service cycle, effectively lower extra power consumption of compressor host and save long-term electricity cost

Product Description

Key consumable for compressor lubrication circulation system, continuously purifies lubricating oil, protects screw rotor and bearing assembly from abrasive wear, extends oil replacement cycle and cuts unexpected breakdown failure rate of whole compressor unit
