Oil Filters

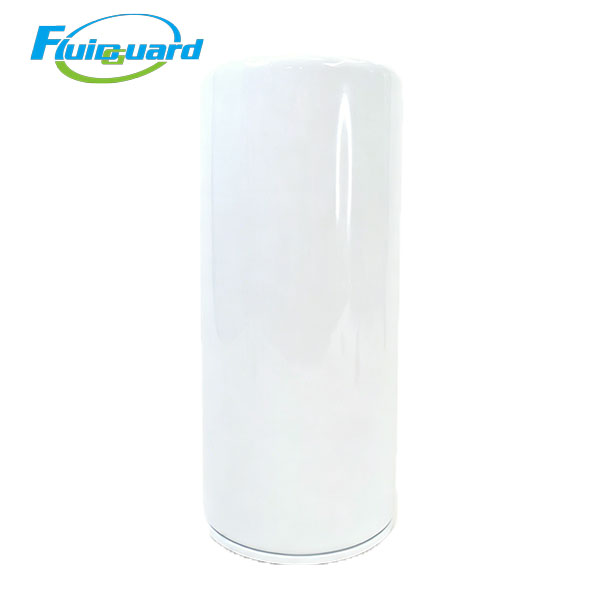

Model No.: 36860336

Product Type: Spin-on full-flow engine & compressor oil filter

Technical Specifications

Outer Diameter: Φ120mm, Overall Height: 295mm, Connect Thread: 1 3/4"-12 UN

Filter Media: Imported American HV glass fiber + Korean Ahlstrom composite cellulose paper

Filtration precision: 10~15μm, Filtration efficiency ≥99.8%

Standard service life: 2000 working hours; Temp range: -20℃ ~ +130℃, Max working pressure:1.8MPa

Product Features

Gradient multi-layer pleated filter medium, big dirt holding capacity, efficiently trap metal wear debris, carbon sludge, oxidation sediment and aging oil impurities inside lubricating oil, effectively protect compressor main rotor, bearings and airend from abrasive scratch damage.

Built-in integrated anti-drainback valve + overload bypass safety valve: Anti-drainback valve retains residual oil inside filter after shutdown to avoid dry-start abrasion; bypass valve automatically opens when element clogged or cold start high oil viscosity, prevent insufficient lubrication and sudden machine stop failure.

Thickened anti-corrosion cold rolled steel shell with electrophoretic rust-proof coating, outstanding compression & vibration resistance, stable sealing under long-time continuous high-load running and severe vibration construction environment, effectively avoid oil leakage.

Strictly produced per original OEM dimensional standard, identical thread and outline size, realize direct spin-on installation without any modification, greatly shorten field maintenance replacement time and reduce after-sale labor cost.

Optimized internal runner layout reduces oil flow resistance and system pressure drop, help compressor keep rated exhaust volume steadily and cut down unnecessary power consumption in long-period continuous operation.

Detailed Description

Installed on main oil circulation pipeline of mobile screw compressor, this spin-on oil filter is core vulnerable spare part of compressor lubrication system. It continuously purifies circulating lubricant to keep clean oil circulation, slow down internal component wear of airend, extend service cycle of compressor oil and whole unit, reduce customers’ long-term running & maintenance cost. Periodic regular replacement can effectively solve abnormal high-temperature shutdown, oil cooler blockage and premature oil deterioration caused by contaminated lubricating oil.
