Oil Filters

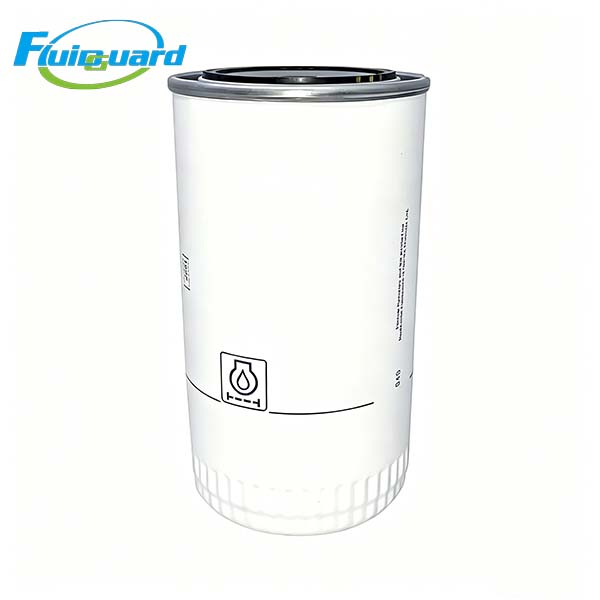

The 2914910100 is a heavy-duty spin-on oil filter, designed for large construction machinery, heavy commercial vehicles, industrial diesel engines and engineering equipment lubrication systems. It efficiently traps metal debris, carbon deposits, sludge and fine contaminants in engine oil, keeps the lubrication system clean, reduces component wear, avoids oil circuit blockage, and ensures long-term stable operation of equipment.

Key Features

Adopts high-density multi-layer composite filter media, with high filtration accuracy and large dirt holding capacity to extend service cycle.

Built-in anti-drain back valve prevents oil backflow after engine shutdown and avoids dry start damage.

Internal bypass valve guarantees continuous oil supply under cold start or filter clogging conditions.

Reinforced thick steel shell structure, high pressure resistance and deformation resistance, suitable for harsh working environments.

Premium nitrile rubber sealing ring features aging resistance, tight fitting and excellent oil leakage prevention.

Standard overall dimension and thread design, easy screw-on installation, direct replacement without any modification.

Technical Specifications

Part Number: 2914910100

Type: Spin-on Oil Filter

Outer Diameter: 108 mm

Overall Height: 196 mm

Seal Outer Diameter: 82 mm

Seal Inner Diameter: 68 mm

Thread Size: 1-12 UNF

Filtration Rating: 10 μm

Filtration Efficiency: ≥ 99.5%

Bypass Valve Opening Pressure: 2.6 bar

Max Working Pressure: 2.0 MPa

Service Life: 2000–3000 operating hours

Application:Suitable for heavy-duty construction machinery, large agricultural equipment, heavy trucks, industrial diesel engines and generator sets with matching mounting standards.
