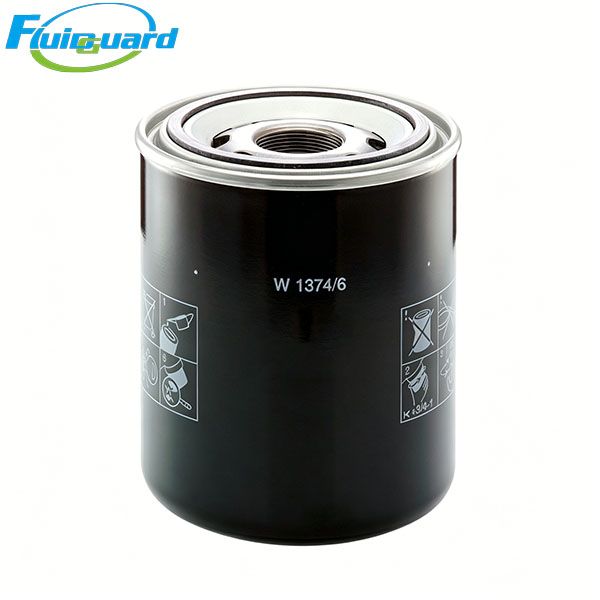

22388045 Oil Filter

Model : 22388045

Type : Oil Filters

Replacement for : 22388045

It coalesces fine oil mist into large droplets, returning oil to the sump, and delivers clean, low‑oil compressed air.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

PN: 22388045

Type: Spin‑on air/oil separator

Filtration precision: 0.1 μm

Efficiency: ≥99.99%

Oil carryover: ≤3 ppm

Service life: 3500–5200 working hours

Seal: NBR gasket

Thread: Standard spin‑on

Dimension: OD 122 mm × Height 257 mm

Weight:2.2 kg

Max working pressure: 1.6 MPa

Working temperature: -10℃ ~ +100℃

Initial pressure drop: ≤0.02 MPa

Features

High‑efficiency coalescing media: Removes 0.01–1 μm oil mist, ensures ≤3 ppm oil carryover.

Spin‑on design: Tool‑free, fast replacement.

Heavy‑duty steel housing: Pressure and corrosion resistant.

Long service life: Reduces maintenance frequency.

Description

It coalesces fine oil mist into large droplets, returning oil to the sump, and delivers clean, low‑oil compressed air.
