Oil Filters

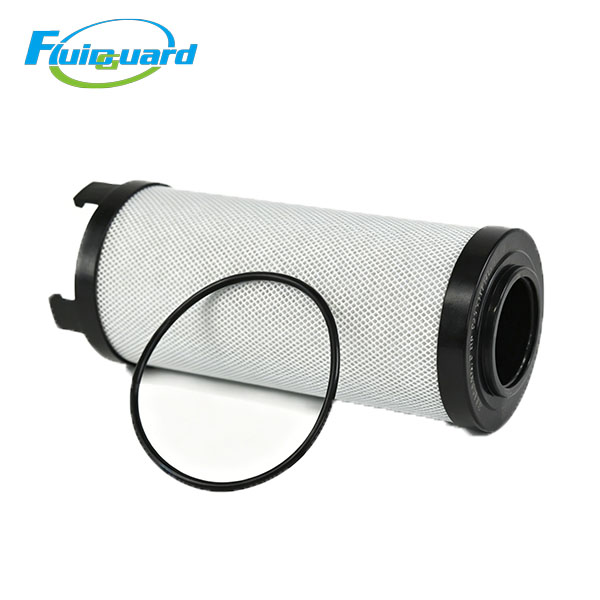

OEM PN: 2118342

Dimension Parameter

Outer Diameter:76.2mm

Diameter:43.2mm

Height:181.4mm

Net Weight:0.68kg

Core Filtration Data

Filter Medium: Imported HV Microglass Fiber Composite Material, multi-layer deep pleated construction

Nominal Filtration Rating:10~15μm, β≥200, overall filtration efficiency ≥99.8%

Opening pressure of built-in bypass valve: 25PSI

Working Temperature Range: -35℃ ~ +110℃, compatible with mineral compressor oil & fully synthetic lubricant

Max allowable working pressure:24bar, burst resistance up to 55bar

Standard service life:2000 working hours; 3000~3500 working hours under clean indoor operating surroundings

Detailed Product Advantages

High-density deep folded microglass filter medium expands effective filtering area greatly, owns superior dirt holding capacity, can efficiently capture fine metal abrasive powder from rotor wear, high-temperature carbon deposit, oil oxidation colloid and pipeline rust impurities, keep circulating lubricating oil persistently clean and stable.

Integral precision bypass valve inside filter core: once filter medium is blocked and differential pressure exceeds set value, bypass valve opens automatically to guarantee uninterrupted oil circulation, effectively avoid compressor dry friction startup, overheat alarm or unexpected shutdown caused by insufficient lubricant supply.

Full epoxy resin end cap encapsulation + high-temperature resistant NBR/Viton sealing ring, eliminate medium leakage risk completely; anti-deformation structural design adapts to long-time continuous vibration and fluctuating oil pressure of compressor lubrication loop.

Product Description

It effectively protects main airend rotor and bearing assembly from abrasive damage, slow down oil degradation rate, extend lubricating oil replacement cycle and reduce unplanned machine breakdown rate, regularly periodic replacement is required per equipment maintenance manual to secure long-term stable running of whole compressor unit.
