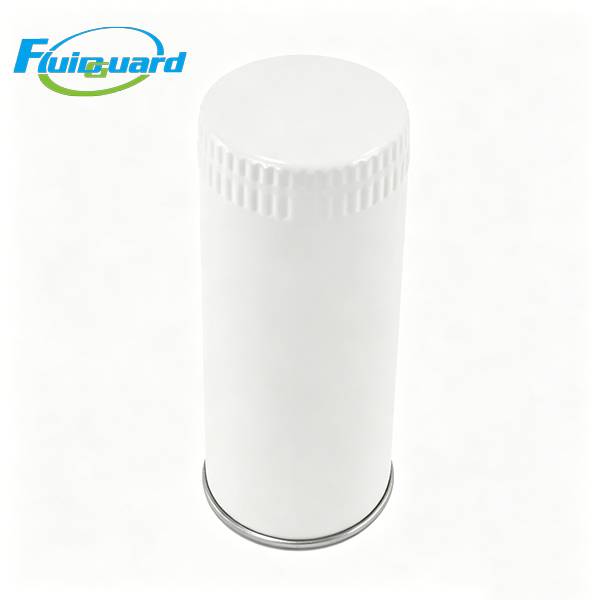

Model : 1626088200
Type : Oil Filters
Replacement for : 1626088200
Height : 210 mm
It uses high-performance glass fiber filter media to remove fine metal particles, carbon deposits and oil sludge from lubrication oil, protecting bearings, gears and other precision components. It ensures clean oil circulation and stable operation under high temperature and high pressure.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
It uses high-performance glass fiber filter media to remove fine metal particles, carbon deposits and oil sludge from lubrication oil, protecting bearings, gears and other precision components. It ensures clean oil circulation and stable operation under high temperature and high pressure.
Key Features
High precision filtration: 10–15μm accuracy, filtration efficiency up to 99.8%.
Large dirt holding capacity: extends service life to 2000–4000 hours.
Low pressure drop: optimized flow design, initial differential pressure＜0.02 MPa.
Heavy-duty construction: metal shell with anti-corrosion coating, withstands up to 15 bar working pressure.
High-temperature resistance: works reliably from -10°C to +100°C.
Leak-proof seal: high-elasticity heat-resistant gasket for tight fit.
Direct replacement: standard spin-on design, easy installation without special tools.
Size Specifications
Outer Diameter: 97 mm
Total Height: 210 mm
