Oil Filters

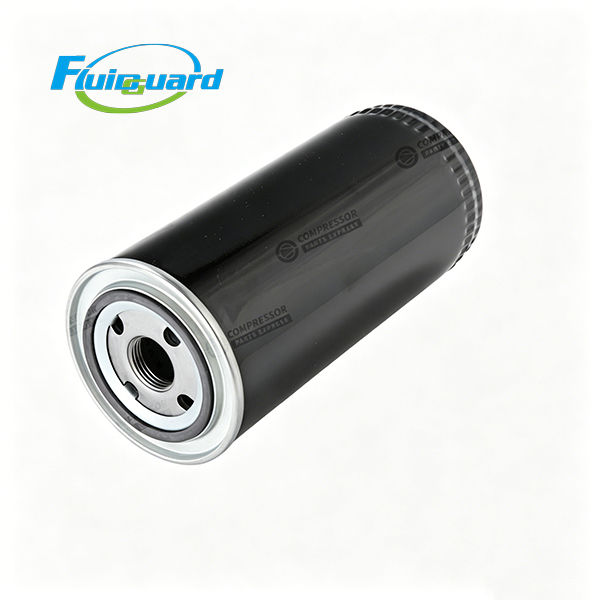

The 1619377100 is a heavy-duty spin-on oil filter, mainly used for screw air compressors, industrial diesel engines and heavy machinery lubrication systems. It efficiently intercepts metal wear particles, carbon deposits, sludge and fine contaminants in lubricating oil, keeps the oil circuit clean, reduces component friction and wear, and ensures stable operation of equipment under high-load and high-temperature conditions.

Key Features

Adopts high-efficiency composite filter media, with precise filtration accuracy and large dirt holding capacity to prolong service cycle.

Built-in anti-drain back valve prevents oil backflow after shutdown and avoids dry-start damage to equipment.

Internal bypass valve ensures continuous oil supply during cold start or filter clogging.

Reinforced thick steel shell, high pressure and deformation resistance, adapts to harsh industrial working environments.

High-quality nitrile rubber seal ring, good heat and aging resistance, tight fitting and reliable oil leakage prevention.

Standard thread and overall dimension design, easy installation and direct replacement without modification.

Technical Specifications

Outer Diameter: 96 mm

Overall Height: 140 mm

Seal Outer Diameter: 72 mm

Seal Inner Diameter: 61 mm

Application

Suitable for screw air compressors, industrial generators, construction machinery and other industrial equipment with matching installation standards.
