Oil Filters

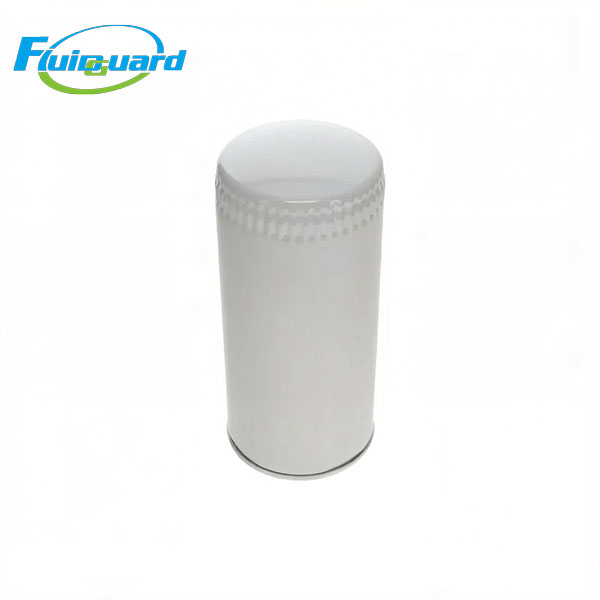

The Filter 1613610591​ is a high-performance spin-on oil filter element designed for industrial screw air compressors and pneumatic systems. It is engineered to remove contaminants such as dirt, metal particles, carbon deposits, and other impurities from the lubricating oil. This process ensures clean oil circulation, effectively protecting internal moving components (such as rotors, bearings, and gears) from abrasive wear, maintaining stable equipment operation, and extending the service life of the machinery.

Key Features:

High-Efficiency Filtration:​Utilizes high-grade synthetic blend or cellulose filter media to capture fine particles, typically rated at 10–20 microns, with high filtration efficiency.

Durable Construction:​Features a robust steel canister and anti-drain back valve (where applicable) to ensure structural integrity under high pressure and prevent oil drainage upon shutdown.

Reliable Sealing:​Equipped with a high-quality gasket and precision-machined threads (commonly 1"-12 UNF or similar) to ensure a leak-proof fit and easy spin-on installation.

Optimized Flow:​Designed to maintain low flow resistance, ensuring consistent oil supply to the compressor system without causing significant pressure drop.

Technical Specifications (Typical):

Part Number:​1613610591

Type:​ Spin-On Oil Filter Element

Thread Size:​1"-12 UNF (Typical for this series)

Outer Diameter:​93 mm – 98 mm

Total Height:​210 mm – 220 mm

Filtration Rating:​0–20 μm

Working Pressure:​Up to 1.4–2.5 MPa

Service Life:​ Approx. 2000–3000 operating hours (depending on oil type and operating conditions)

Application:​Suitable for various industrial rotary screw air compressors requiring reliable lubrication oil filtration.
