Oil Filters

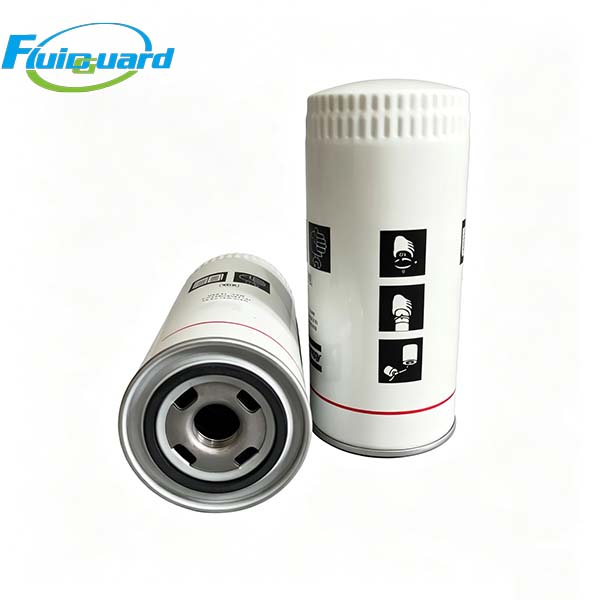

The 1613610500 is a heavy-duty spin-on oil filter, mainly used for screw air compressors, industrial engines and heavy-duty mechanical lubrication systems. It effectively captures fine metal particles, carbon sludge, oxidation residues and other micro contaminants in lubricating oil, maintains clean oil circulation, reduces mechanical friction loss, and guarantees continuous and stable operation of equipment under high-temperature and high-pressure working conditions.

Key Features

Adopts high-density composite filter media, featuring stable filtration accuracy and excellent dirt holding capacity to extend filter service life and reduce maintenance frequency.

Built-in anti-drain back valve locks residual oil inside the filter after equipment shutdown, effectively preventing dry start wear and protecting internal machine components.

Internal bypass valve provides instantaneous oil circulation during cold start or filter blockage, avoiding oil shortage and ensuring uninterrupted equipment operation.

Integrated thickened steel shell structure with strong pressure resistance and anti-deformation performance, perfectly adapting to complex and harsh industrial working environments.

Premium heat-resistant nitrile rubber sealing ring provides excellent aging resistance and tight fitting performance, effectively preventing oil leakage and pressure loss.

Precision standard thread and overall dimension design enables fast installation and direct replacement without any modification.

Technical Specifications

Part Number: 1613610500

Type: Spin-on Oil Filter

Outer Diameter: 94 mm

Overall Height: 135 mm

Seal Outer Diameter: 70 mm

Seal Inner Diameter: 59 mm

Thread Size: M24×1.5

Filtration Rating: 10 μm

Filtration Efficiency: ≥ 99%

Bypass Valve Opening Pressure: 2.4 bar

Max Working Pressure: 1.8 MPa

Service Life: 2000 operating hours

Application

Suitable for screw air compressors, industrial mechanical equipment, general machinery and other lubrication systems with matching installation specifications.
