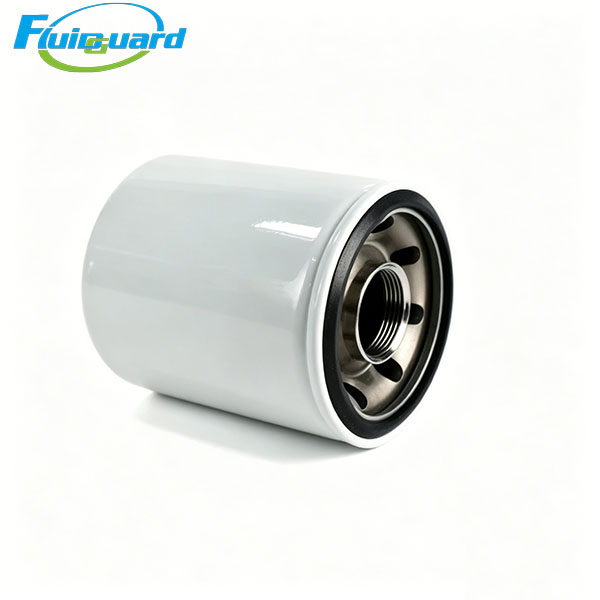

142136 Oil Filter

Model : 142136

Type : Oil Filters

Replacement for : 142136

142136 is spin-on oil filter to purify lubricating oil, stabilize compressor output and extend service life of internal wearing parts.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

Model: 142136

Type: Spin-on Oil Filter for Screw Air Compressor

Specifications

Outer Diameter: 118 mm

Total Height: 180 mm

Thread: 1 1/4-11 BSP

Filter Media: High-grade glass fiber & HV cellulose filter paper

Filtration Rating: 10~15 μm

Standard Service Life: 2000 working hours

Application

Fit for Quincy series industrial screw air compressors.

Features

Integrated rubber end cap for full sealing to avoid oil leakage.

Large filter area with high dirt holding capacity and low oil flow resistance for power saving.

Effectively protects compressor rotor and internal lubrication components.

Description

142136 is spin-on oil filter to purify lubricating oil, stabilize compressor output and extend service life of internal wearing parts.
