Cooler

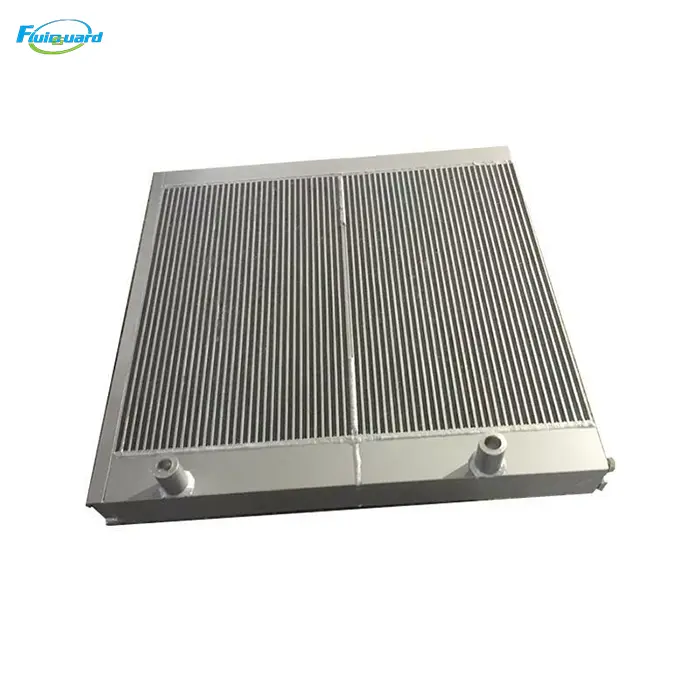

24523508 Cooler Assembly designed for rotary screw air compressors. It is a critical heat exchange component used to maintain optimal operating temperatures for both the compressed air and the lubricating oil.

Application: Specifically engineered for 37KW compressors, including the R30i, R37i, and RS30-37 series.

Type: A combination welded core (Air & Oil) featuring an aluminum plate-and-bar structure for high-efficiency heat dissipation.

Specifications:

Construction: Robust parallel fins with reinforced edges to maximize surface area.

Weight: Approximately 54.15 lbs (~24.5 kg).

Pressure/Temp: Designed for working pressures up to 40 bar and temperatures up to 220°C
