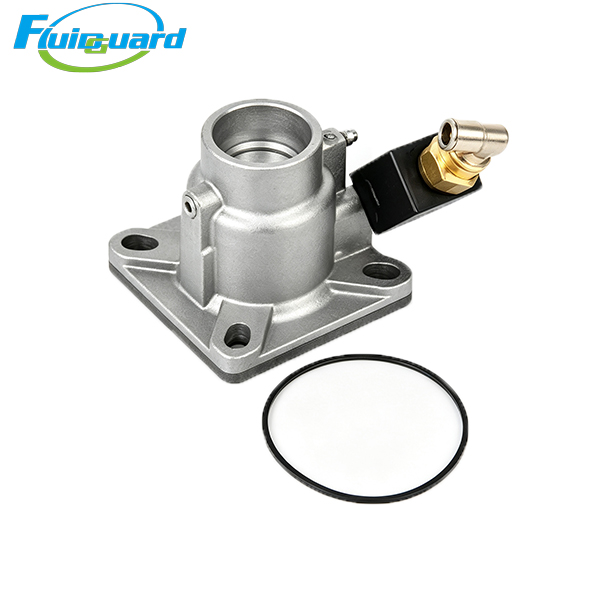

1614900860 Intake Unloader Valve

Model : 1614900860

Type : Compressor Unloader IntakeValves

Replacement for : 1614900860

Equipped with diaphragm, spool and spring components, cooperate with solenoid valve to control suction air volume, realize loading‑unloading, startup and shutdown blow‑down function.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Main Features

Type：screw compressor intake unloader valve；Body material：cast aluminum alloy

Max working pressure：16bar；Working temperature：‑20℃ ~ +120℃

Function：Installed at host suction port. Fully open for loading under low pressure; throttle or close for unloading when reaching set pressure; complete blow‑down during shutdown, avoid pressure‑carrying startup of unit.

Applications

Maintenance suggestion：Clean internal dirt before installation; inspect diaphragm and spring status; check matching solenoid valve performance; test loading‑un‑loading action after installation; replace complete assembly when diaphragm damaged or spool severely stuck.
