Compressor Solenoid Valves

Core Label Technical Parameters

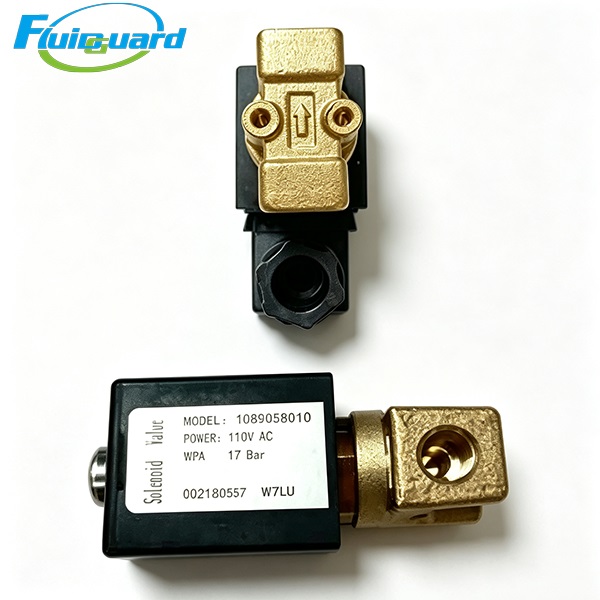

Model No: 1089058010

Valve Body Material: Forged brass, two-position two-way direct acting structure

Flow Direction: Arrow mark on brass body indicates unidirectional fluid flow

Optional Feature: Manual test override button on coil side for offline debugging without power

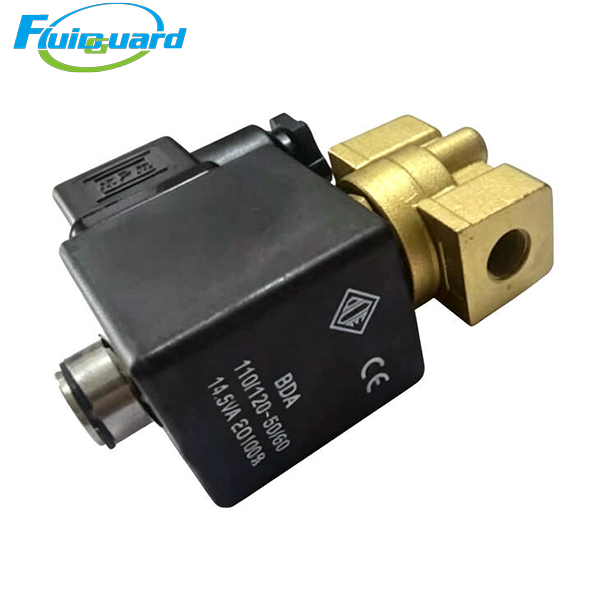

Product Structure Breakdown

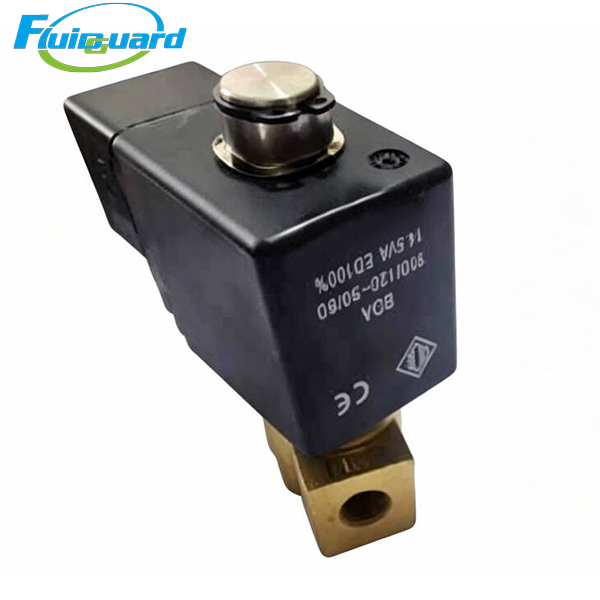

Black Encapsulated Electromagnetic Coil

W7/LU coil winding design, stable output under AC110V, supports long-time continuous energization for 24/7 running industrial equipment

Integrated metal manual test knob for on-site maintenance and pipeline inspection

Forged Brass Valve Body

Built-in flow direction arrow to avoid wrong installation

Standard internal thread port, general pipeline interface for air compressor systems

High strength brass, pressure resistance up to 17 bar, anti-rust and anti-medium corrosion

Internal Core Assembly

Stainless steel valve core + high temperature resistant FKM sealing gasket, suitable for compressed air and medium-temperature fluid

Working Principle

Power On State: Coil generates electromagnetic suction to lift the valve core, opens the pipeline channel to allow fluid circulation.

Manual Override Function: Press the side metal button to manually lift the valve core, simulate energized open state for troubleshooting without power supply.

Main Application

Intake Loading & Unloading Control

Control air intake to adjust air output, stabilize system pipeline pressure, switch compressor between loaded air production and unloaded standby mode.

Unit Shutdown Blowdown / Pressure Relief

Automatically open the pipeline to release residual internal pressure the moment the compressor stops; prevent excessive startup load and motor burnout on next boot.

Oil Separator Tank Blow-off Control

Regularly discharge condensed water and residual pressure inside the oil tank to protect the air-oil separator filter element.

Cooling Circuit Auxiliary Switch

Control cooling water and lubricating oil flow for airend temperature regulation.

Secondary Application Scenarios

Industrial Pneumatic Automation: On-off control for compressed air circuits, packaging machinery, textile equipment, pneumatic fixture cylinders

Light Fluid Control: Small industrial cleaning machines, water circulation systems, low-pressure steam equipment
