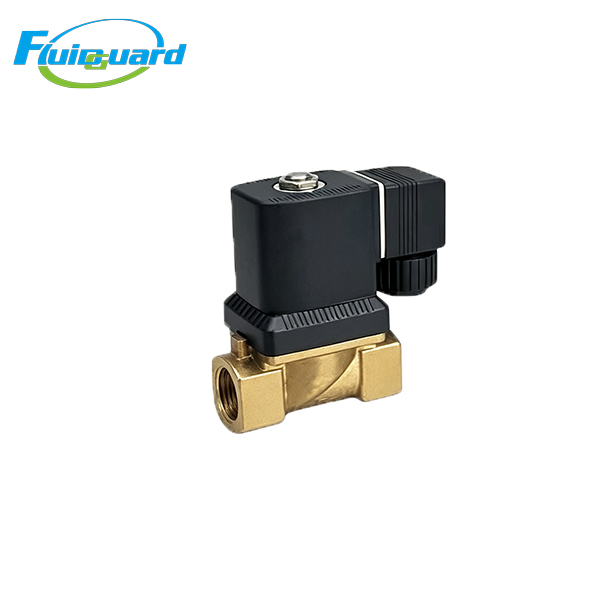

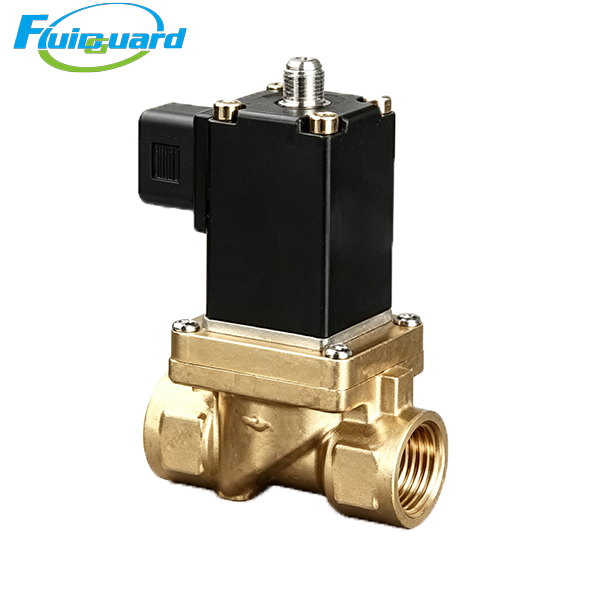

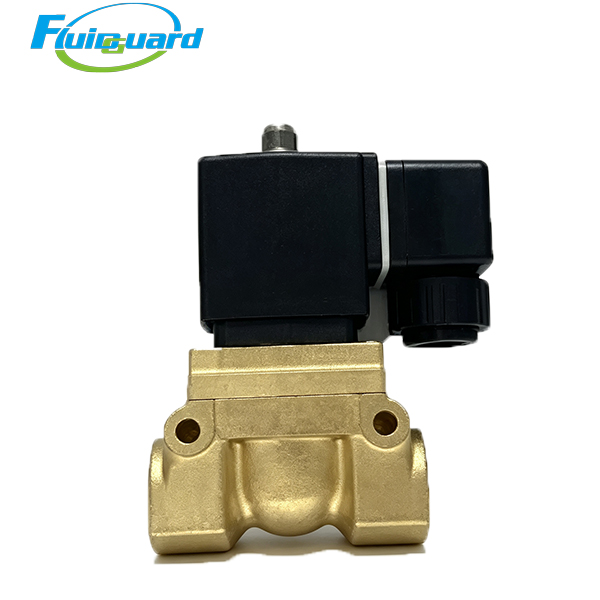

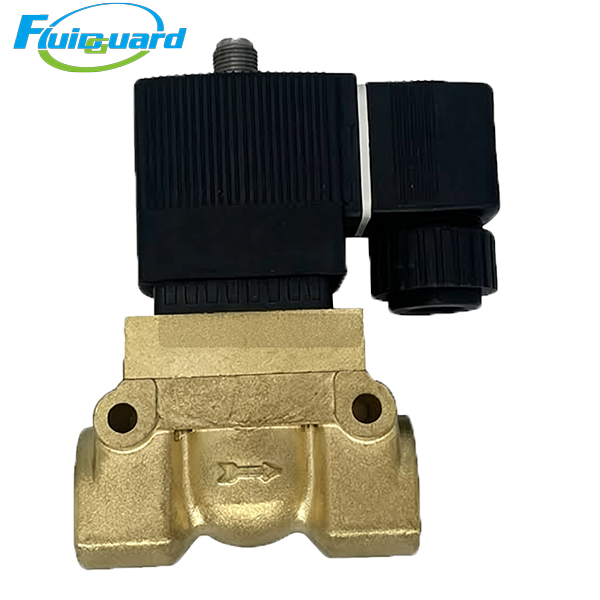

Compressor Solenoid Valves

Main Features

Brass Valve Body: High mechanical strength, anti‑corrosion, suitable for compressor harsh working conditions. Sealing material resists oil‑mixed compressed‑air medium, low leakage rate.

Pilot‑operated Diaphragm Structure: Low power consumption, stable action, high switching frequency, long service life for continuous industrial operation.

Electrical Specification: DC24V coil, quick response, reliable actuation, good shock‑resistance for mobile compressor working environment.

Applications

Performs blow‑off, unloading venting, pressure relief control. Releases residual pressure during unloading and shutdown, prevents motor starting under load, protects compressor main unit.

General Industrial Pneumatics: Air circuit on‑off control for pneumatic equipment, suitable for non‑corrosive compressed‑air systems.

Working Principle

De‑energized state: valve maintains original status;

Energized: electromagnetic force actuates pilot diaphragm to open / close main valve, switch air passage;

Power‑off: diaphragm resets, air circuit returns to initial state, completes vent & load‑unload control cycle.
