Compressor Belts

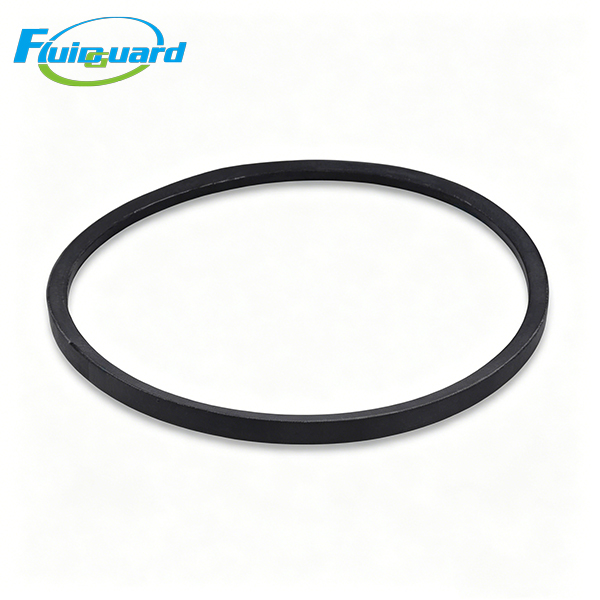

The SPZ1587LD is a metric wedge designed for high-power transmission in compact drive layouts. The "SPZ" denotes a narrow wedge section , "1587" refers to the pitch  length of 1587 mm, and "LD" typically indicates a specific brand variant, raw-edge cogged construction, or a particular manufacturer's series. It is constructed with high-strength polyester tensile cords and a specialized rubber compound  to transmit power efficiently from motors to driven equipment.

Function / Features:

Power Transmission:​ Transfers rotational force from a drive pulley  to a driven pulley  with high efficiency.

High Power / Compact Design:​ The narrow wedge profile allows for higher power transmission compared to classical V-belts of the same top width, enabling smaller pulley diameters and shorter center distances.

Raw Edge / Cogged:​ If "LD" implies a cogged  raw-edge belt, it offers greater flexibility around small pulleys, reduced bending heat, better grip, and improved energy efficiency compared to wrapped belts.

Durability:​ Reinforced with polyester cords for low stretch, and made with oil, heat, and abrasion-resistant rubber compounds. Generally static-dissipating  per ISO standards.

Application:

Widely used in industrial machinery requiring reliable power transmission, including:

Rotary Screw Air Compressors​

Centrifugal Fans​ and Blowers

Water Pumps​ and Hydraulic Power Units

Conveyors​

Agricultural Machinery​

Woodworking​ and Milling Machines

Real Size :

Section Profile:​ SPZ (Top Width: 9.7 mm / ~10 mm, Height/Thickness: 8.0 mm)

Pitch / Datum Length (Ld/Lp):​ 1587 mm​ (This is the effective working length)

Inside Length (Li):​ Approx. 1549 mm​ (Pitch Length minus ~38mm for SPZ section)

Outside Length (La):​ Approx. 1600 mm​ (Pitch Length plus ~13mm for SPZ section)

Angle:​ 34° / 38°
