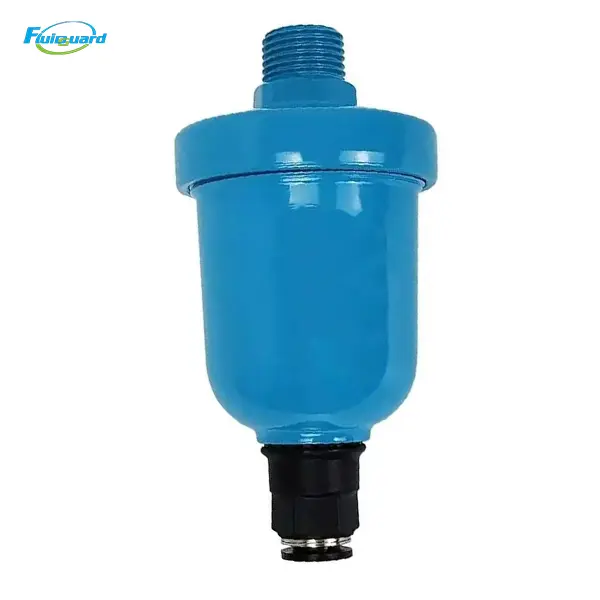

Model : ADTV-30
Type : Compressor Auto DrainValves
Replacement for :
The ADTV-30 Auto Drain Valve is a mechanical, float-type drain used in compressed air systems to automatically discharge accumulated condensation without the need for electricity.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
The ADTV-30 Auto Drain Valve is a mechanical, float-type drain used in compressed air systems to automatically discharge accumulated condensation without the need for electricity.
Core Specifications
Operating Principle: Float-operated (Mechanical). When water levels rise, the float lifts to open the discharge valve.
Connection Size: G1/2" (DN15) inlet/outlet ports.
Pressure Range:
Working Pressure: 0.15 to 1.0 MPa (approx. 22–145 PSI).
Proof Pressure: 1.5 MPa (approx. 217 PSI).
Temperature Range: 5°C to 60°C (41°F to 140°F).
