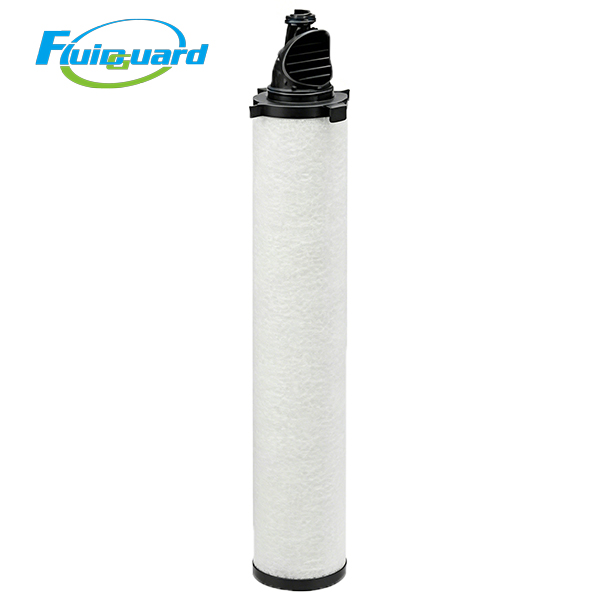

Coalescing Filters

Model: P055AA

Core Technical Parameters

Filter Media: Multi-layer borosilicate microglass fiber composite

Filtration Precision: 0.01μm

Residual Oil Content: ≤0.01 ppm

Max Working Temp: ≤80℃

Replacement Cycle: 12 months / 6000 working hours

Compliance: FDA food-grade standard, ISO 8573 compressed air purity standard

Product Features

Ultra-high efficiency coalescing medium, intercept micro oil mist, liquid water, fine dust and microorganisms at one time

Low differential pressure drop design, reduce long-term air system power consumption

Hydrophobic & oleophobic treated filter material, large dirt & liquid holding capacity

Integrated plastic top connector, quick plug-and-install, leak-proof sealing

Anti-corrosion stainless steel inner support cage, stable under high flow continuous operation

Standard OEM overall dimension, direct replacement of original DH filter cartridge

Main Application

Post-stage ultra-precise purification for compressed air system, matched with AO coarse filter front-end protection.

Widely used in: automotive spraying, electronics manufacturing, food & pharmaceutical, laser cutting, laboratory instrument, high-precision pneumatic equipment, nitrogen purification industry.

Can be combined with ACS activated carbon filter to remove oil vapor and odor, reach ultra-clean air standard.
