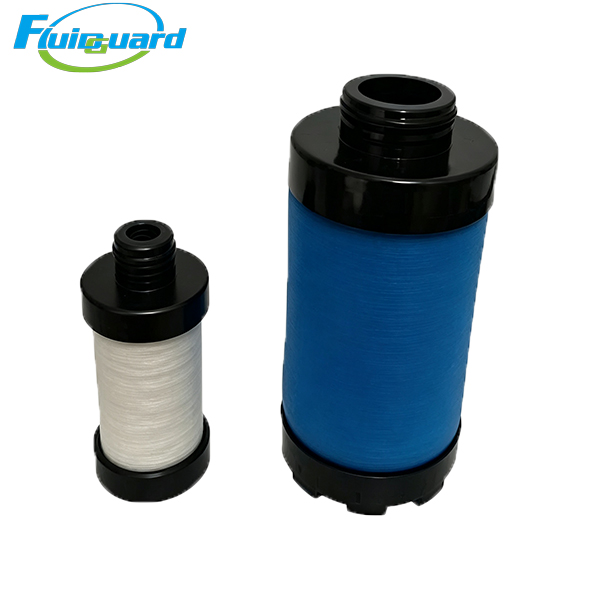

Coalescing Filters

Part No: JHF7‑60

Filter Media: High‑efficiency borosilicate glass fiber composite

Filtration Rating: 0.1 μm solid particle removal

Residual oil content: ≤0.1 mg/m³ at 20℃

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

ervice Life: 6000‑8000 operating hours

Weight: 2.15 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently intercepts fine solid particles, oil aerosols and liquid water droplets in compressed air.

Optimized deep‑pleated structure provides large filtration area and maintains low pressure drop during long‑term continuous operation.

Thread‑rod installation structure for quick‑change on‑site maintenance. Reliable integrated sealing prevents air‑bypass secondary contamination.

Excellent hydrophobic‑oleophobic performance promotes liquid draining and reduces liquid re‑entrainment risk.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, painting workshops, food & beverage, electronic manufacturing, chemical processing, pharmaceutical and other industrial sectors.
