Coalescing Filters

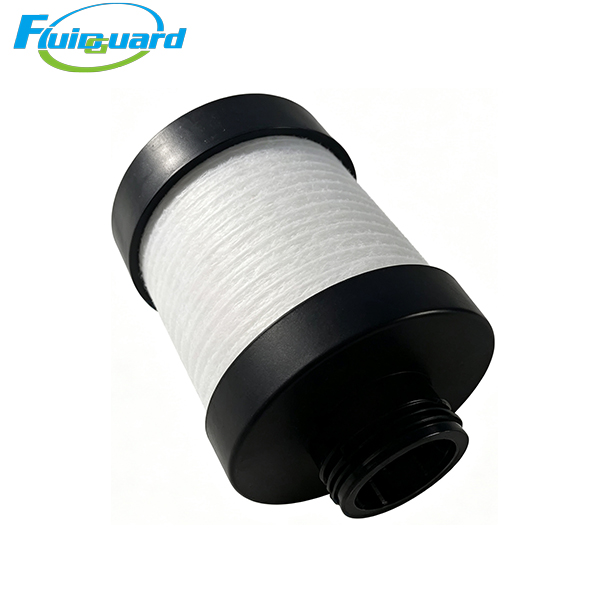

Part No: FTP055

Filter Media: High‑efficiency borosilicate glass fiber

Filtration Rating: 3 μm solid particle removal

Residual oil content: No coalescing oil removal function, dedicated for solid particle and pipeline impurity filtration

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 1.25 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently intercepts solid dust, pipeline rust and large‑size particulate impurities in compressed air.

Optimized pleated structure provides large filtration area and maintains low pressure drop during long‑time continuous operation.

Reliable integrated sealing structure ensures tight fitting inside filter housing and prevents air‑bypass secondary contamination.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, food & beverage, electronics, painting, pneumatic automation and other industrial sectors.
