Coalescing Filters

Model: DFE0160AO

Core Technical Specifications

Filtration Grade: AO High-efficiency Submicron Oil Mist Coalescing Grade

Filtration Precision: Captures ≥0.01μm liquid oil mist, water aerosol and ultra-fine solid particles

Outlet Residual Oil Content: ≤0.01 ppm

Filtration Efficiency: 99.999% removal efficiency for 0.01μm liquid aerosols

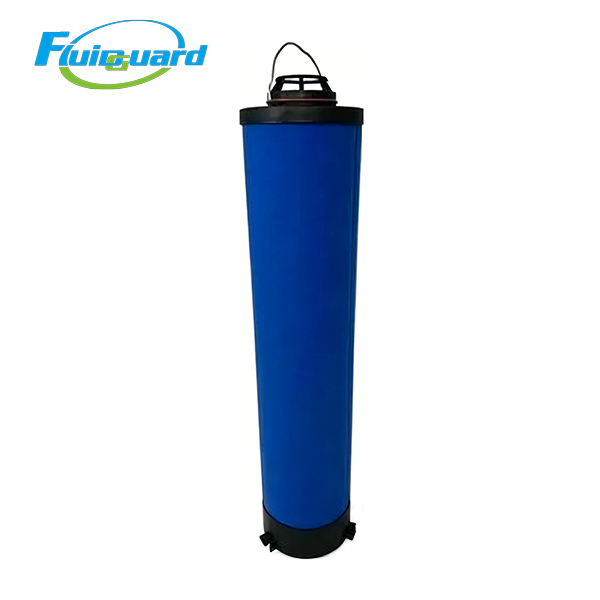

Filter Media: Multi-layer gradient hydrophobic borosilicate microglass fiber composite, outer blue anti-re-entrainment foam sleeve, anti-static & oleophobic coating, silicon-free optional

Core Dimension Data

Size Code: 0160

Rated Flow Rate: 16.0 Nm³/min

Outer Diameter: 85 mm

Overall Length: 420 mm

Max Working Pressure: 1.6 MPa (16 bar / 232 PSIG)

Continuous Operating Temperature: 2℃ ~ 66℃

Standard Service Life: Replace after 4,000 operating hours or 12 months, whichever comes first

Replacement Trigger: Warning alarm at differential pressure ＞0.045 MPa; mandatory shutdown replacement when differential pressure ≥0.07 MPa

Initial Differential Pressure: ≤0.016 MPa

Sealing Structure: Integrated reinforced black ABS plastic end caps with built-in nitrile rubber double gaskets, zero air bypass leakage

Key Product Advantages

Deep capture of invisible ultra-fine oil mist for high-standard precision production

After AA particulate pre-filtration, this AO-grade element intercepts submicron oil aerosol that general AR coalescing filters cannot fully remove. The outer blue hydrophobic foam prevents secondary liquid re-entrainment; aggregated liquid droplets drain rapidly to the filter bowl, delivering ultra-low residual oil compressed air for strict cleanliness manufacturing processes.

Deep-pleated media design balances high filtration efficiency and low airflow resistance

Gradient folded microglass fiber expands effective filtration area and forms smooth internal airflow channels. Stable low pressure drop is maintained under 24/7 full-load continuous operation, effectively cutting long-term power consumption of air compressor units.

Extra-large liquid holding capacity extends maintenance intervals

Thick multi-gradient hydrophobic fiber matrix stores massive condensed oil and water, resisting rapid saturation under high-humidity workshop environments and reducing frequent replacement labor and material costs.

Hydrolysis-proof reinforced construction eliminates secondary pipeline contamination

Oil-repellent borosilicate glass fiber matched with stainless steel support mesh avoids fiber shedding, preventing oil-dust contamination to downstream precision instruments, spray guns and electronic assembly equipment. Silicon-free version meets strict coating production requirements with zero silicone pollution risk.

Working Principle

Pre-cleaned compressed air from particulate pre-filter flows outside-in through multi-layer hydrophobic borosilicate microglass fiber media. Tiny oil and water aerosols collide and aggregate into large liquid droplets; the outer blue hydrophobic foam sleeve stops droplets from being re-carried into airflow, all condensed liquid flows down to the filter bowl drain port by gravity. Ultra-dry, ultra-low-oil compressed air is delivered to the subsequent activated carbon filter for terminal odor removal.

Application Industries

widely applied in:

Automotive high-gloss electrostatic painting, multi-line laser cutting workshops, pharmaceutical ster
