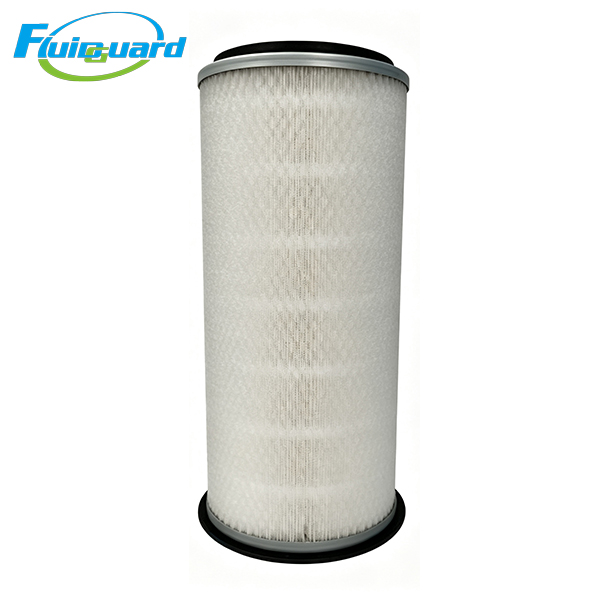

Coalescing Filters

Part No: DD1050

Filter Media: High‑efficiency borosilicate glass fiber

Filtration Rating: 1 μm solid particle removal

Residual oil content: ≤1 ppm

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 2.70 kg

Main Features

High‑performance borosilicate glass‑fiber media achieves high‑efficiency removal of solid particles, oil aerosols and liquid water droplets from compressed air.

Optimized deep‑pleated structure provides large filtration area and maintains low pressure drop during long‑time continuous operation.

Reliable polyurethane sealing gaskets ensure tight sealing inside filter housing, prevent bypass‑air contamination.

Good hydrophobic‑oleophobic performance promotes liquid draining and reduces secondary carry‑over risk.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, food & beverage, electronics, painting, chemical processing and other industrial sectors.
