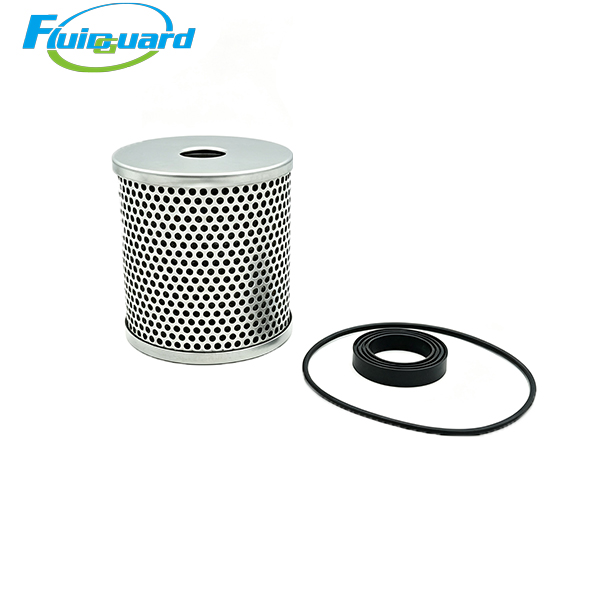

Coalescing Filters

Part No: AMH‑EL450

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.9%

Max Working Pressure: 1.0MPa (10bar), Proof Pressure:1.5MPa

Working Temperature: ‑5℃ ~ +60℃

Replacement Cycle: Every 2 years or when pressure drop reaches 0.1MPa

Filter Media: Multi‑layer composite glass fiber

Main Features

Dedicated element for AMH‑series micro‑mist separator. Two‑stage structure: 0.3μm pre‑filter plus 0.01μm fine filter, efficiently removes sub‑micron oil mist, water vapor, solid particles and carbon powder contaminants

Low pressure drop design with excellent air permeability to reduce air‑compressor system energy loss

High dirt‑holding capacity, anti‑fiber shedding, stable long‑term filtration performance

Metal protective mesh reinforces filter media against air‑flow impact

Produce high‑clean air for painting, precision pneumatics and analytical instruments.

Application Industries

Air‑compressor post‑treatment system, painting & coating, electronics manufacturing, laboratory air supply, precision automation pneumatic equipment, food packaging, instrument air‑source purification

Product Summary

With 0.01μm high precision, it deeply removes ultra‑fine oil mist, moisture and solid contaminants to deliver low‑oil clean compressed air for strict‑oil‑content industrial applications, direct OEM replacement filter element.
