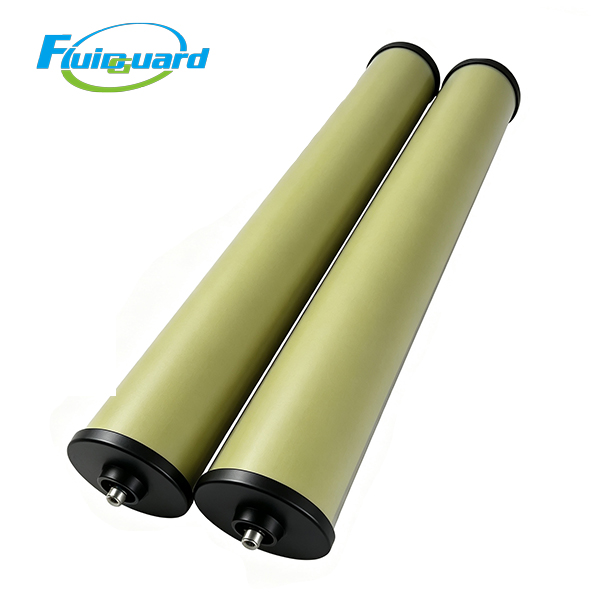

Coalescing Filters

Model: 9.9680.0

Core Technical Specifications

Outlet Residual Oil Content: ≤0.01 ppm

Filtration Efficiency: 99.999% removal efficiency for 0.01μm liquid aerosols

Mounting Feature: Top bayonet twist-lock quick installation, dual flat rubber sealing end caps

Continuous Operating Temperature: 2℃ ~ 66℃

Standard Service Life: Replace after 4,000 operating hours or 12 months, whichever comes first

Replacement Trigger: Warning alarm at differential pressure ＞0.045 MPa; mandatory shutdown replacement when differential pressure ≥0.07 MPa

Initial Differential Pressure: ≤0.016 MPa

Key Product Advantages

Deep capture of invisible submicron oil mist for high-standard precision production

After KF particulate pre-filtration, this KTF high-efficiency element intercepts ultra-fine oil aerosol that general coalescing media cannot fully remove. The outer blue hydrophobic foam avoids secondary liquid re-entrainment; aggregated liquid droplets drain rapidly to the filter bowl, supplying ultra-low residual oil compressed air for painting, electronic assembly and lab analysis equipment.

Deep-pleated media balances high filtration efficiency and low airflow resistance

Gradient folded glass fiber expands effective filtration area and forms smooth internal airflow channels. Stable low pressure drop is maintained under 24/7 full-load continuous operation, effectively reducing long-term power consumption of air compressor units.

Large liquid holding capacity extends maintenance intervals

Thick multi-gradient hydrophobic fiber matrix stores large volumes of condensed oil and water, resisting rapid saturation under high-humidity workshop environments and cutting frequent replacement labor and material costs.

Working Principle

Pre-cleaned compressed air from KF particulate pre-filter flows outside-in through multi-layer hydrophobic borosilicate glass fiber media. Tiny oil and water aerosols collide and aggregate into large liquid droplets; the outer blue hydrophobic foam sleeve blocks droplets from being re-carried into airflow, all condensed liquid flows down to the filter bowl drain port by gravity. Ultra-dry, ultra-low-oil compressed air is delivered to subsequent activated carbon filter for terminal odor removal.

Application Industries

widely applied in:

Automotive electrostatic painting workshops, laser cutting equipment, pharmaceutical sterile cleanrooms, food aseptic packaging, electronic component assembly, laboratory precision analytical instruments, medium-scale factory centralized compressed air stations, precision pneumatic automation production lines.
